Ring describes a ring type geometry for tracking. More...

#include <Ring.h>

Inheritance diagram for Ring:

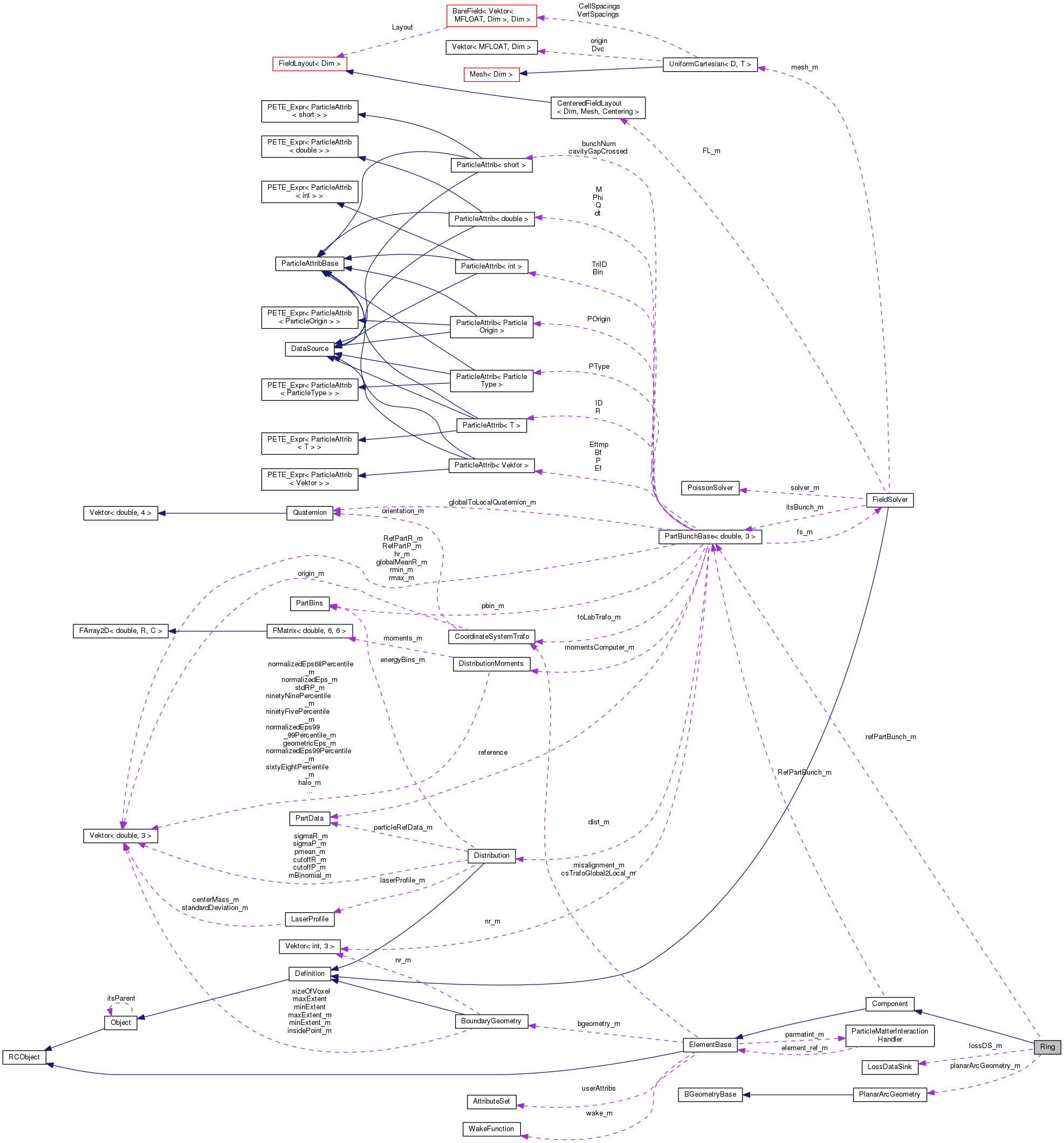

Collaboration diagram for Ring:

Public Member Functions
	Ring (const std::string &ring)

	Ring (const Ring &ring)

virtual	~Ring ()

virtual bool	apply (const size_t &id, const double &t, Vector_t &E, Vector_t &B) override

virtual bool	apply (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B) override

virtual void	initialise (PartBunchBase< double, 3 > *bunch, double &startField, double &endField) override

virtual void	initialise (PartBunchBase< double, 3 > *bunch)

virtual void	finalise () override

virtual bool	bends () const override

virtual void	accept (BeamlineVisitor &visitor) const override

virtual void	getDimensions (double &zBegin, double &zEnd) const override

virtual ElementBase *	clone () const override

void	appendElement (const Component &element)

virtual EMField &	getField () override

virtual const EMField &	getField () const override

virtual PlanarArcGeometry &	getGeometry () override

virtual const PlanarArcGeometry &	getGeometry () const override

void	setLossDataSink (LossDataSink *sink)

PartBunchBase< double, 3 > *	getLossDataSink () const

void	setRefPartBunch (PartBunchBase< double, 3 > *bunch)

PartBunchBase< double, 3 > *	getRefPartBunch () const

void	setHarmonicNumber (double cyclHarm)

double	getHarmonicNumber ()

void	setRFFreq (double rfFreq)

double	getRFFreq () const

void	setBeamRInit (double rInit)

double	getBeamRInit () const

void	setBeamPhiInit (double phiInit)

double	getBeamPhiInit () const

void	setBeamThetaInit (double thetaInit)

double	getBeamThetaInit () const

void	setBeamPRInit (double pRInit)

double	getBeamPRInit () const

void	setLatticeRInit (double rInit)

double	getLatticeRInit () const

void	setLatticePhiInit (double phiInit)

double	getLatticePhiInit () const

Vector_t	getNextPosition () const

Vector_t	getNextNormal () const

void	setLatticeThetaInit (double thetaInit)

double	getLatticeThetaInit () const

void	setSymmetry (double symmetry)

void	setScale (double scale)

double	getSymmetry () const

void	setIsClosed (bool isClosed)

double	getIsClosed () const

void	setRingAperture (double minR, double maxR)

double	getRingMinR () const

double	getRingMaxR () const

void	lockRing ()

RingSection *	getSection (int i) const

RingSection *	getLastSectionPlaced () const

size_t	getNumberOfRingSections () const

std::vector< RingSection * >	getSectionsAt (const Vector_t &pos)

Public Member Functions inherited from Component
	Component (const std::string &name)
	Constructor with given name. More...

	Component ()

	Component (const Component &right)

virtual	~Component ()

EVector	Efield (const Point3D &P) const
	Return the field in a point. More...

BVector	Bfield (const Point3D &P) const
	Return the field in a point. More...

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point. More...

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point. More...

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point. More...

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point. More...

virtual bool	applyToReferenceParticle (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B)

virtual bool	getPotential (const Vector_t &, const double &, Vector_t &, double &)

virtual double	getDesignEnergy () const

virtual void	setDesignEnergy (const double &energy, bool changeable=true)

virtual void	goOnline (const double &kineticEnergy)

virtual void	goOffline ()

virtual bool	Online ()

virtual ElementType	getType () const override
	Get element type std::string. More...

virtual const ElementBase &	getDesign () const
	Return design element. More...

virtual void	trackBunch (PartBunchBase< double, 3 > *bunch, const PartData &, bool revBeam, bool revTrack) const
	Track particle bunch. More...

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map. More...

void	setExitFaceSlope (const double &)

Public Member Functions inherited from ElementBase
	ElementBase (const std::string &name)
	Constructor with given name. More...

	ElementBase ()

	ElementBase (const ElementBase &)

virtual	~ElementBase ()

virtual const std::string &	getName () const
	Get element name. More...

virtual void	setName (const std::string &name)
	Set element name. More...

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length. More...

virtual double	getElementLength () const
	Get design length. More...

virtual void	setElementLength (double length)
	Set design length. More...

virtual void	getElementDimensions (double &begin, double &end) const

virtual double	getOrigin () const
	Get origin position. More...

virtual double	getEntrance () const
	Get entrance position. More...

virtual double	getExit () const
	Get exit position. More...

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform. More...

virtual Euclid3D	getTransform (double s) const
	Get transform. More...

virtual Euclid3D	getTotalTransform () const
	Get transform. More...

virtual Euclid3D	getEntranceFrame () const
	Get transform. More...

virtual Euclid3D	getExitFrame () const
	Get transform. More...

virtual Euclid3D	getEntrancePatch () const
	Get patch. More...

virtual Euclid3D	getExitPatch () const
	Get patch. More...

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value. More...

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute. More...

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute. More...

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute. More...

virtual Channel *	getChannel (const std::string &aKey, bool create=false)
	Construct a read/write channel. More...

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel. More...

virtual ElementBase *	copyStructure ()
	Make a structural copy. More...

bool	isSharable () const
	Test if the element can be shared. More...

virtual void	makeSharable ()
	Set sharable flag. More...

bool	update (const AttributeSet &)
	Update element. More...

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any More...

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element More...

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any More...

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual CoordinateSystemTrafo	getEdgeToBegin () const

virtual CoordinateSystemTrafo	getEdgeToEnd () const

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

virtual bool	isInside (const Vector_t &r) const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame. More...

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename. More...

std::string	getOutputFN () const
	Get output filename. More...

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const

void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute. More...

double	getElementPosition () const

bool	isElementPositionSet () const

Public Member Functions inherited from RCObject
int	addReference () const
	Increment reference count. More...

int	removeReference () const
	Decrement the reference count. More...

bool	isShared () const
	Test for sharing. More...

Static Public Member Functions
static Vector_t	convert (const Vector3D &vec)

static Vector3D	convert (const Vector_t &vec)

Static Public Member Functions inherited from ElementBase
static std::string	getTypeString (ElementType type)

Private Member Functions
void	resetAzimuths ()

void	checkAndClose ()

void	buildRingSections ()

void	rotateToCyclCoordinates (Euclid3D &euclid3d) const

Vector_t	getStartPosition () const

Vector_t	getStartNormal () const

	Ring ()

Ring &	operator= (const Ring &ring)

void	checkMidplane (Euclid3D delta) const

Rotation3D	getRotationStartToEnd (Euclid3D delta) const

Static Private Member Functions
static bool	sectionCompare (RingSection const const sec1, RingSection const const sec2)

Private Attributes
PlanarArcGeometry	planarArcGeometry_m

PartBunchBase< double, 3 > *	refPartBunch_m

LossDataSink *	lossDS_m

double	beamRInit_m

double	beamPRInit_m

double	beamPhiInit_m

double	beamThetaInit_m

double	latticeRInit_m

double	latticePhiInit_m

double	latticeThetaInit_m

bool	willDoAperture_m = false

double	minR2_m

double	maxR2_m

bool	isLocked_m

bool	isClosed_m

int	symmetry_m

double	scale_m = 1.

double	cyclHarm_m

double	rfFreq_m

double	phiStep_m

std::vector< RingSectionList >	ringSections_m

RingSectionList	section_list_m

Static Private Attributes
static const double	lengthTolerance_m = 1e-2

static const double	angleTolerance_m = 1e-2

Additional Inherited Members
Protected Member Functions inherited from ElementBase
bool	isInsideTransverse (const Vector_t &r) const

Protected Member Functions inherited from RCObject
	RCObject ()
	Default constructor. More...

	RCObject (const RCObject &)
	Copy constructor. More...

virtual	~RCObject ()=0

RCObject &	operator= (const RCObject &right)

Protected Attributes inherited from Component
double	exit_face_slope_m

PartBunchBase< double, 3 > *	RefPartBunch_m

bool	online_m

Protected Attributes inherited from ElementBase
bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Static Protected Attributes inherited from Component
static const std::vector< double >	defaultAperture_m

Detailed Description

Ring describes a ring type geometry for tracking.

Ring describes a ring type geometry for tracking. Ring provides the necessary interfaces for e.g. OPAL-CYCL to track through the ring geometry, while enabling the user to add arbitrary field elements in a closed geometry.

Ring uses similar routines to OPAL-T OpalBeamline class to set up geometry; note that as OPAL-CYCL places the beam in an x-y geometry we place in an x-y geometry for Ring (i.e. the axis of the ring is by default the z-axis). So far only placement of elements in the midplane is supported. It is not possible to give vertical displacements or rotations, or add elements that might create vertical displacements and rotations.

Also aim to maintain backwards compatibility with Cyclotron (i.e. use ParallelCyclotronTracker)

Definition at line 53 of file Ring.h.

Constructor & Destructor Documentation

Ring::Ring ( const std::string & ring )

Constructor

Parameters

ring	Name of the ring as defined in the input file

Definition at line 41 of file Ring.cpp.

References setRefPartBunch().

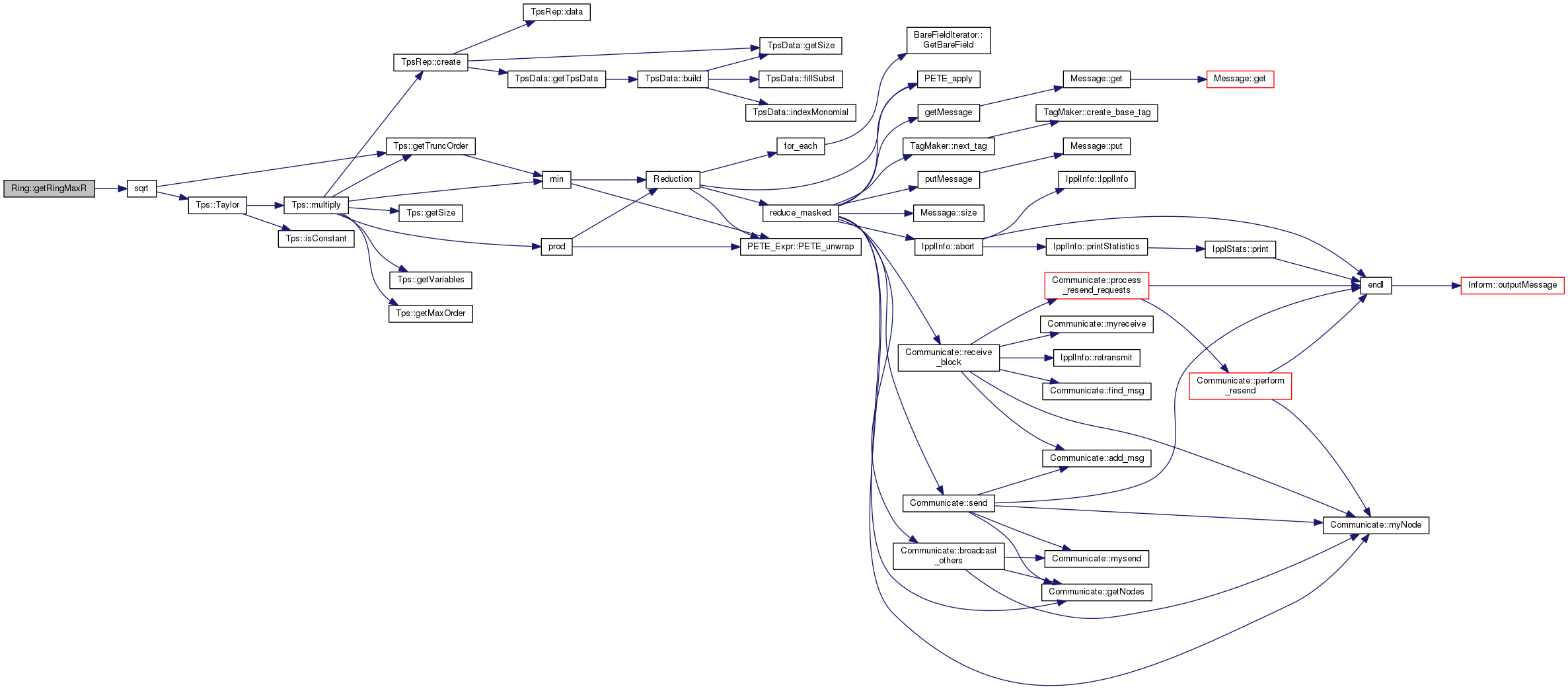

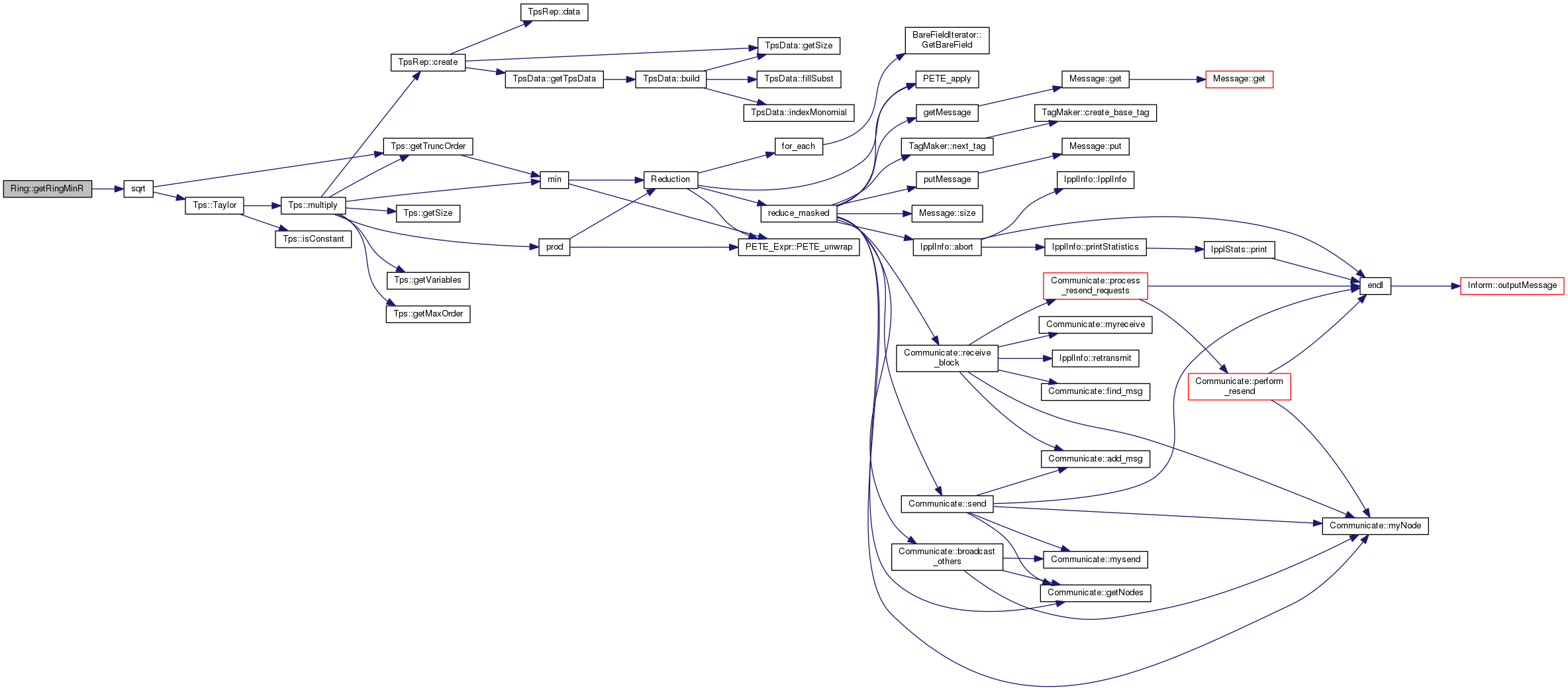

Here is the call graph for this function:

Ring::Ring ( const Ring & ring )

Copy constructor

Can't copy LossDataSink so throw exception if this is set

Definition at line 59 of file Ring.cpp.

References buildRingSections(), lossDS_m, refPartBunch_m, section_list_m, and setRefPartBunch().

Here is the call graph for this function:

Ring::~Ring ( )

virtual

Destructor - deletes lossDS_m if not nullptr

Definition at line 90 of file Ring.cpp.

References section_list_m.

Ring::Ring ( )

private

Disabled

Referenced by clone().

Member Function Documentation

void Ring::accept ( BeamlineVisitor & visitor ) const

overridevirtual

Accept the BeamlineVisitor

Just calls visitRing function on the visitor. I guess the point of this function is that it enables us to store a pointer to the visitor object or something

Implements ElementBase.

Definition at line 55 of file Ring.cpp.

References BeamlineVisitor::visitRing().

Here is the call graph for this function:

void Ring::appendElement ( const Component & element )

Add element to the ring

Add element to the ring. Elements are assumed to occupy a region of space defined by a (flat) plane at the start and a plane at the end, both infinite in extent. The position and rotation of these planes are defined according to the Component geometry given by element.getGeometry().

Caller owns memory allocated to element - Ring makes a copy.

Throws an exception if the geometry would bend the element out of the midplane (elements out of midplane are not yet supported). Note that BeamlineGeometry considers midplane to be x-z, whereas Ring considers midplane to be x-y; we apply a rotation during set up.

The element is assumed to extend not beyond the element geometry; Ring applies a bounding box based on the element geometry, if there are field maps expanding outside this region they may get cut.

Definition at line 234 of file Ring.cpp.

References atan2(), checkMidplane(), ElementBase::clone(), cos(), endl(), Rotation3D::getAxis(), RingSection::getComponent(), RingSection::getEndNormal(), RingSection::getEndPosition(), ElementBase::getGeometry(), ElementBase::getName(), getNextNormal(), getNextPosition(), Euclid3D::getRotation(), RingSection::getStartNormal(), RingSection::getStartPosition(), BGeometryBase::getTotalTransform(), Euclid3D::getVector(), RingSection::handleOffset(), isLocked_m, rotateToCyclCoordinates(), section, section_list_m, RingSection::setComponent(), RingSection::setComponentOrientation(), RingSection::setComponentPosition(), RingSection::setEndNormal(), RingSection::setEndPosition(), RingSection::setStartNormal(), RingSection::setStartPosition(), and sin().

Referenced by lockRing(), ParallelCyclotronTracker::visitMultipoleT(), ParallelCyclotronTracker::visitMultipoleTCurvedConstRadius(), ParallelCyclotronTracker::visitMultipoleTCurvedVarRadius(), ParallelCyclotronTracker::visitMultipoleTStraight(), ParallelCyclotronTracker::visitOffset(), ParallelCyclotronTracker::visitSBend3D(), ParallelCyclotronTracker::visitScalingFFAMagnet(), ParallelCyclotronTracker::visitVariableRFCavity(), and ParallelCyclotronTracker::visitVerticalFFAMagnet().

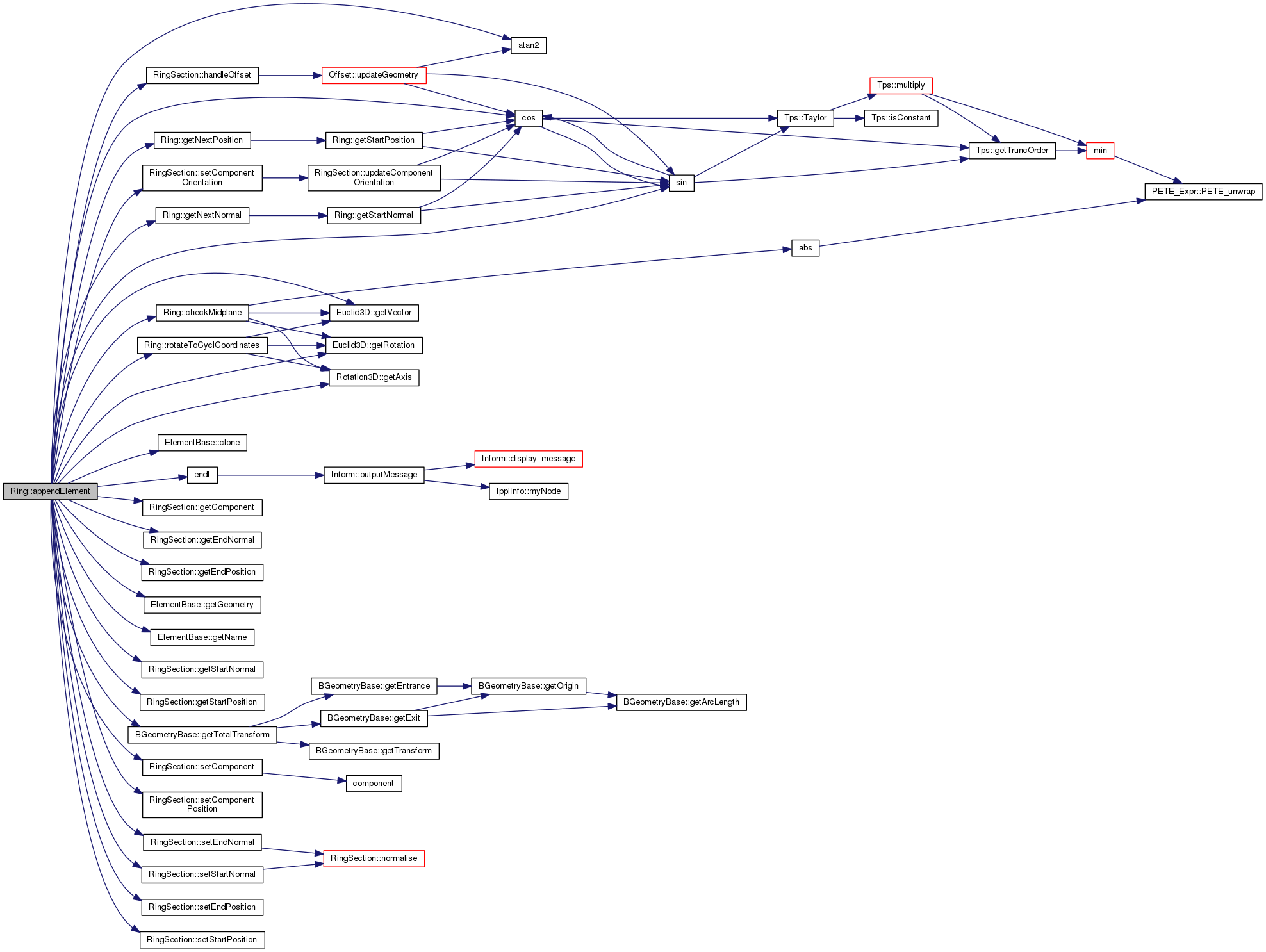

Here is the call graph for this function:

bool Ring::apply	(	const size_t &	id,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

overridevirtual

Overwrite data in vector E and B with electric and magnetic field

Parameters

i	index of item in RefPartBunch_m - particle bunch
t	time
E	array where electric field vector is stored - any existing data is overwritten
B	array where magnetic field vector is stored - any existing data is overwritten

Returns: false if particle is outside of the field map apertures, else true. If particle is off the field maps, then set flag on the particle "Bin" data to -1 and store in LossDataSink

Reimplemented from Component.

Definition at line 95 of file Ring.cpp.

References LossDataSink::addParticle(), PartBunchBase< T, Dim >::Bin, endl(), ElementBase::getName(), level4(), lossDS_m, PartBunchBase< T, Dim >::M, PartBunchBase< T, Dim >::P, PartBunchBase< T, Dim >::Q, PartBunchBase< T, Dim >::R, and refPartBunch_m.

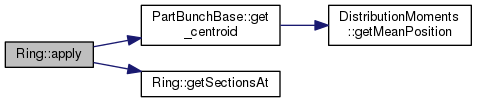

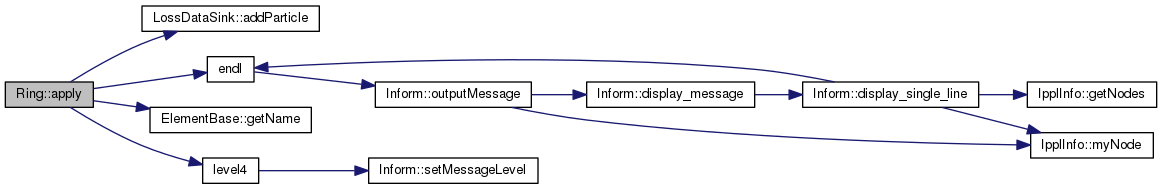

Here is the call graph for this function:

bool Ring::apply	(	const Vector_t &	R,
		const Vector_t &	P,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

overridevirtual

Overwrite data in vector E and B with electromagnetic field at point R

Parameters

R	3 vector position at which the field is found in Cartesian coordinates (i.e. x, y, z with z=vertical)
P	3 vector momentum
centroid	unknown, but not used - bunch mean maybe?
t	time
E	vector where electric field vector will be stored - any existing data is overwritten
B	vector where magnetic field vector will be stored - any existing data is overwritten

Returns: false if particle is outside of the ring aperture, else true. If particle is off the field maps, then set flag on the particle "Bin" data to -1

Reimplemented from Component.

Definition at line 116 of file Ring.cpp.

References PartBunchBase< T, Dim >::get_centroid(), getSectionsAt(), maxR2_m, refPartBunch_m, scale_m, and willDoAperture_m.

Here is the call graph for this function:

virtual bool Ring::bends ( ) const

inlineoverridevirtual

Returns true - Ring is assumed to bend particles, being a ring

Implements Component.

Definition at line 131 of file Ring.h.

void Ring::buildRingSections ( )

private

Definition at line 351 of file Ring.cpp.

References phiStep_m, ringSections_m, section_list_m, and Physics::two_pi.

Referenced by lockRing(), and Ring().

void Ring::checkAndClose ( )

private

Definition at line 336 of file Ring.cpp.

References abs(), angleTolerance_m, lengthTolerance_m, and section_list_m.

Referenced by lockRing().

Here is the call graph for this function:

void Ring::checkMidplane ( Euclid3D delta ) const

private

Definition at line 187 of file Ring.cpp.

References abs(), angleTolerance_m, Rotation3D::getAxis(), Euclid3D::getRotation(), Euclid3D::getVector(), and lengthTolerance_m.

Referenced by appendElement().

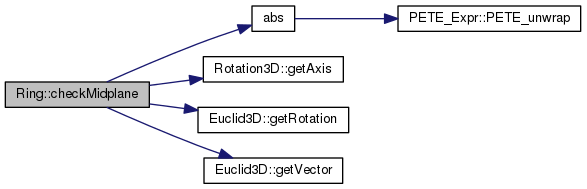

Here is the call graph for this function:

virtual ElementBase* Ring::clone ( ) const

inlineoverridevirtual

Inherited copy constructor

Implements ElementBase.

Definition at line 145 of file Ring.h.

References Ring().

Referenced by ParallelCyclotronTracker::visitRing().

Here is the call graph for this function:

Vector_t Ring::convert ( const Vector3D & vec )

inlinestatic

Convert from a Vector3D to a Vector_t

Definition at line 421 of file Ring.h.

Vector3D Ring::convert ( const Vector_t & vec )

inlinestatic

Convert from a Vector_t to a Vector3D

Definition at line 425 of file Ring.h.

void Ring::finalise ( )

overridevirtual

Clean up the Ring

Ring relinquishes RefPartBunchBase<double, 3> pointer and deletes LossDataSink

Implements Component.

Definition at line 161 of file Ring.cpp.

References lossDS_m, Component::online_m, LossDataSink::save(), and setLossDataSink().

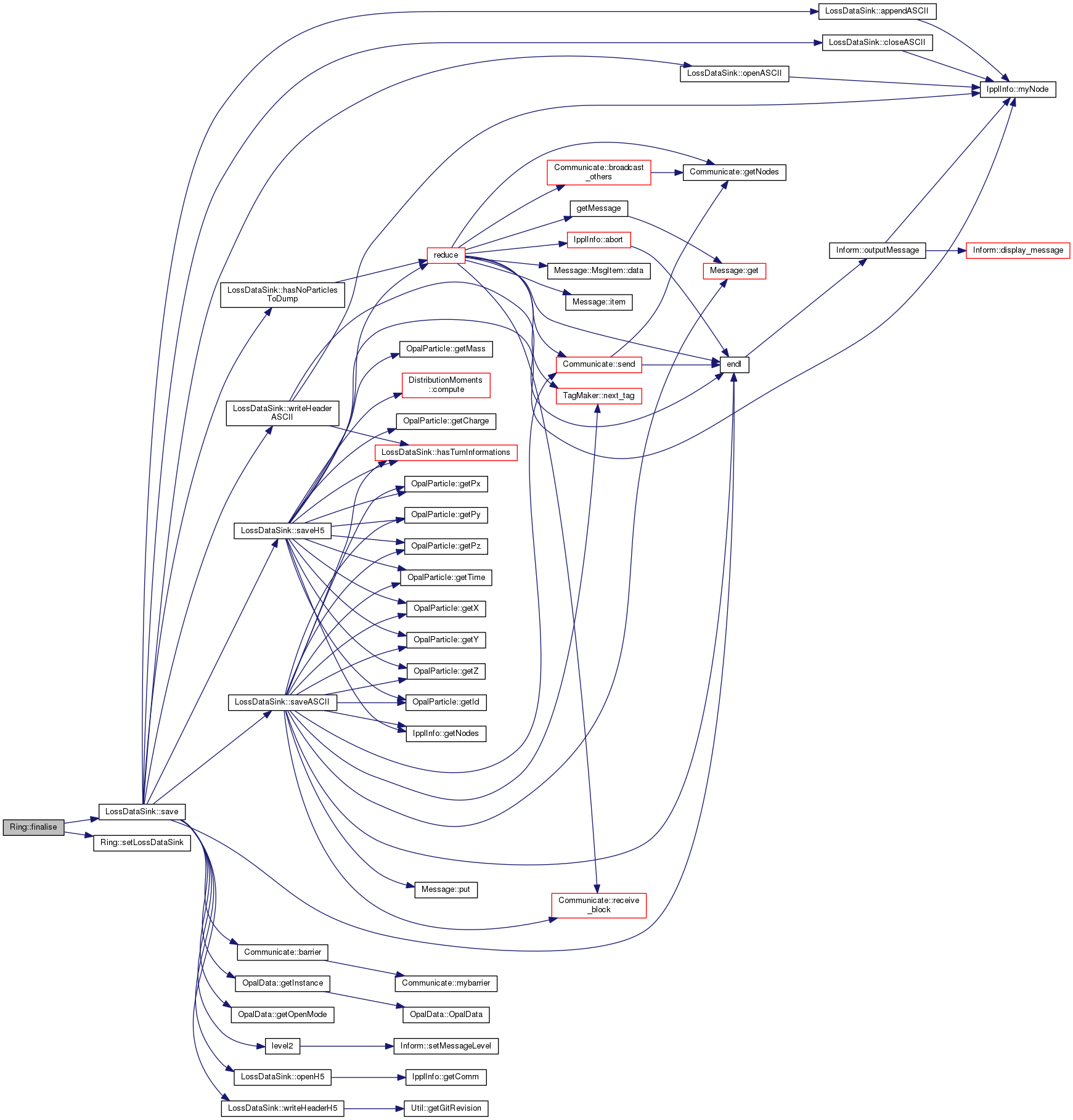

Here is the call graph for this function:

double Ring::getBeamPhiInit ( ) const

inline

Get the initial beam azimuthal angle

Definition at line 231 of file Ring.h.

References beamPhiInit_m.

Referenced by ParallelCyclotronTracker::visitRing().

double Ring::getBeamPRInit ( ) const

inline

Get the initial beam radial momentum

Definition at line 243 of file Ring.h.

References beamPRInit_m.

Referenced by ParallelCyclotronTracker::visitRing().

double Ring::getBeamRInit ( ) const

inline

Get the initial beam radius

Definition at line 225 of file Ring.h.

References beamRInit_m.

Referenced by ParallelCyclotronTracker::visitRing().

double Ring::getBeamThetaInit ( ) const

inline

Get the initial beam rotation relative to the tangent vector

Definition at line 237 of file Ring.h.

References beamThetaInit_m.

Referenced by ParallelCyclotronTracker::visitRing().

void Ring::getDimensions	(	double &	zBegin,
		double &	zEnd
	)		const

overridevirtual

Not implemented - always throws an exception

Implements Component.

Definition at line 145 of file Ring.cpp.

virtual EMField& Ring::getField ( )

inlineoverridevirtual

Not implemented, throws an exception

Implements Component.

Definition at line 169 of file Ring.h.

virtual const EMField& Ring::getField ( ) const

inlineoverridevirtual

Not implemented, throws an exception

Implements Component.

Definition at line 172 of file Ring.h.

virtual PlanarArcGeometry& Ring::getGeometry ( )

inlineoverridevirtual

Not implemented

Implements ElementBase.

Definition at line 175 of file Ring.h.

References planarArcGeometry_m.

virtual const PlanarArcGeometry& Ring::getGeometry ( ) const

inlineoverridevirtual

Not implemented

Implements ElementBase.

Definition at line 178 of file Ring.h.

References planarArcGeometry_m.

double Ring::getHarmonicNumber ( )

inline

Get the harmonic number for RF (number of bunches in the ring)

Definition at line 212 of file Ring.h.

References cyclHarm_m.

Referenced by ParallelCyclotronTracker::getHarmonicNumber(), and ParallelCyclotronTracker::visitRing().

double Ring::getIsClosed ( ) const

inline

Get flag for closure checking

Definition at line 288 of file Ring.h.

References isClosed_m.

RingSection * Ring::getLastSectionPlaced ( ) const

Get the last section placed or nullptr if no sections were placed yet

Definition at line 364 of file Ring.cpp.

References section_list_m.

double Ring::getLatticePhiInit ( ) const

inline

Get the initial element's azimuthal angle

Definition at line 255 of file Ring.h.

References latticePhiInit_m.

double Ring::getLatticeRInit ( ) const

inline

Get the initial element's radius

Definition at line 249 of file Ring.h.

References latticeRInit_m.

double Ring::getLatticeThetaInit ( ) const

inline

Get the first element's horizontal angle

Get the angle in the ring plane with respect to the tangent vector

Definition at line 273 of file Ring.h.

References latticeThetaInit_m.

PartBunchBase<double, 3>* Ring::getLossDataSink ( ) const

Get pointer to lossDataSink.

Ring still owns the memory to which lossDataSink points.

Vector_t Ring::getNextNormal ( ) const

Get the initial element's start normal in cartesian coordinates

Definition at line 220 of file Ring.cpp.

References getStartNormal(), and section_list_m.

Referenced by appendElement().

Here is the call graph for this function:

Vector_t Ring::getNextPosition ( ) const

Get the initial element's start position in cartesian coordinates

Definition at line 206 of file Ring.cpp.

References getStartPosition(), and section_list_m.

Referenced by appendElement().

Here is the call graph for this function:

size_t Ring::getNumberOfRingSections ( ) const

Get number of RingSections

Definition at line 402 of file Ring.cpp.

References section_list_m.

Referenced by PyOpal::Field::getNumberOfElements(), and getSection().

PartBunchBase<double, 3>* Ring::getRefPartBunch ( ) const

Get pointer to RefPartBunchBase<double, 3> from the bunch.

Ring does not own this memory (so neither does caller).

double Ring::getRFFreq ( ) const

inline

Get the nominal RF frequency

Definition at line 219 of file Ring.h.

References rfFreq_m.

double Ring::getRingMaxR ( ) const

inline

Get the ring maximum

Definition at line 300 of file Ring.h.

References maxR2_m, and sqrt().

Here is the call graph for this function:

double Ring::getRingMinR ( ) const

inline

Get the ring minimum

Definition at line 297 of file Ring.h.

References minR2_m, and sqrt().

Here is the call graph for this function:

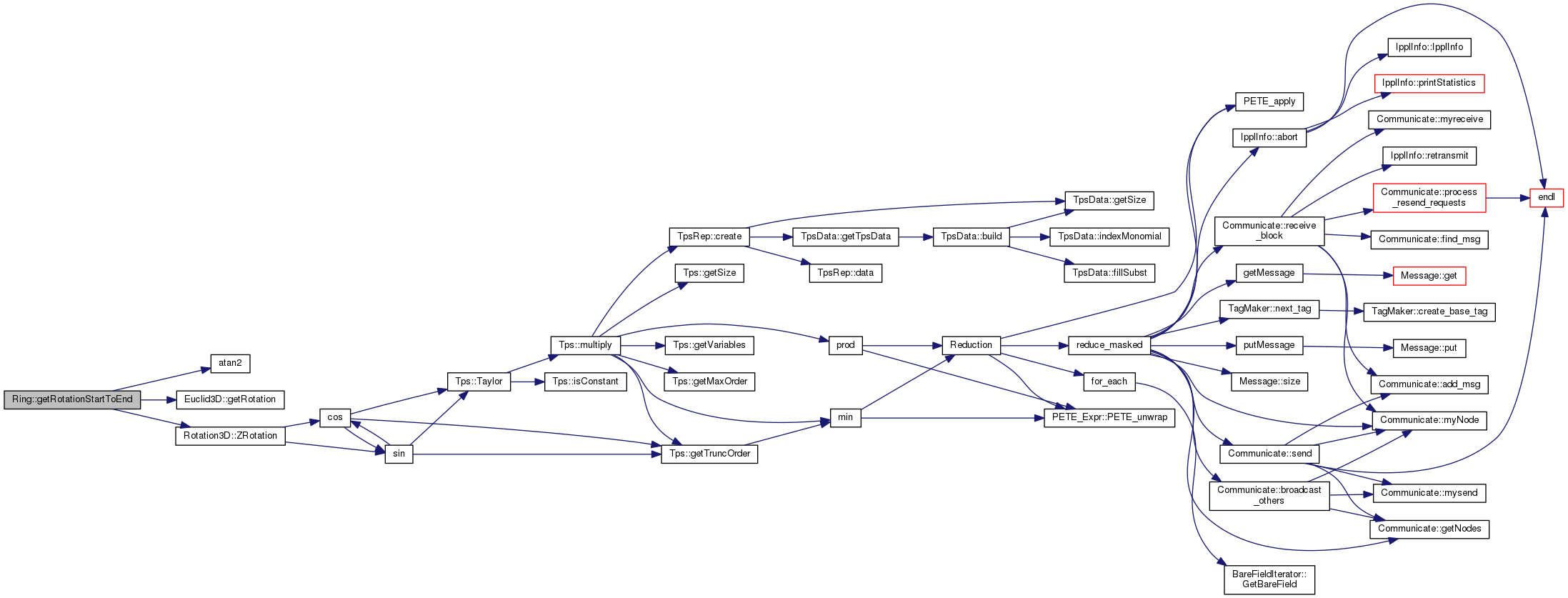

Rotation3D Ring::getRotationStartToEnd ( Euclid3D delta ) const

private

Definition at line 176 of file Ring.cpp.

References atan2(), Euclid3D::getRotation(), and Rotation3D::ZRotation().

Here is the call graph for this function:

RingSection * Ring::getSection ( int i ) const

Return ith section. Throw a readable exception if i is not valid

Definition at line 387 of file Ring.cpp.

References getNumberOfRingSections(), sec(), and section_list_m.

Referenced by PyOpal::Field::getElementEndNormal(), PyOpal::Field::getElementEndPosition(), PyOpal::Field::getElementName(), PyOpal::Field::getElementStartNormal(), and PyOpal::Field::getElementStartPosition().

Here is the call graph for this function:

std::vector< RingSection * > Ring::getSectionsAt ( const Vector_t & pos )

Get the list of sections at position pos

Definition at line 172 of file Ring.cpp.

References section_list_m.

Referenced by apply().

Vector_t Ring::getStartNormal ( ) const

private

Definition at line 228 of file Ring.cpp.

References cos(), latticePhiInit_m, latticeThetaInit_m, and sin().

Referenced by getNextNormal().

Here is the call graph for this function:

Vector_t Ring::getStartPosition ( ) const

private

Definition at line 214 of file Ring.cpp.

References cos(), latticePhiInit_m, latticeRInit_m, and sin().

Referenced by getNextPosition().

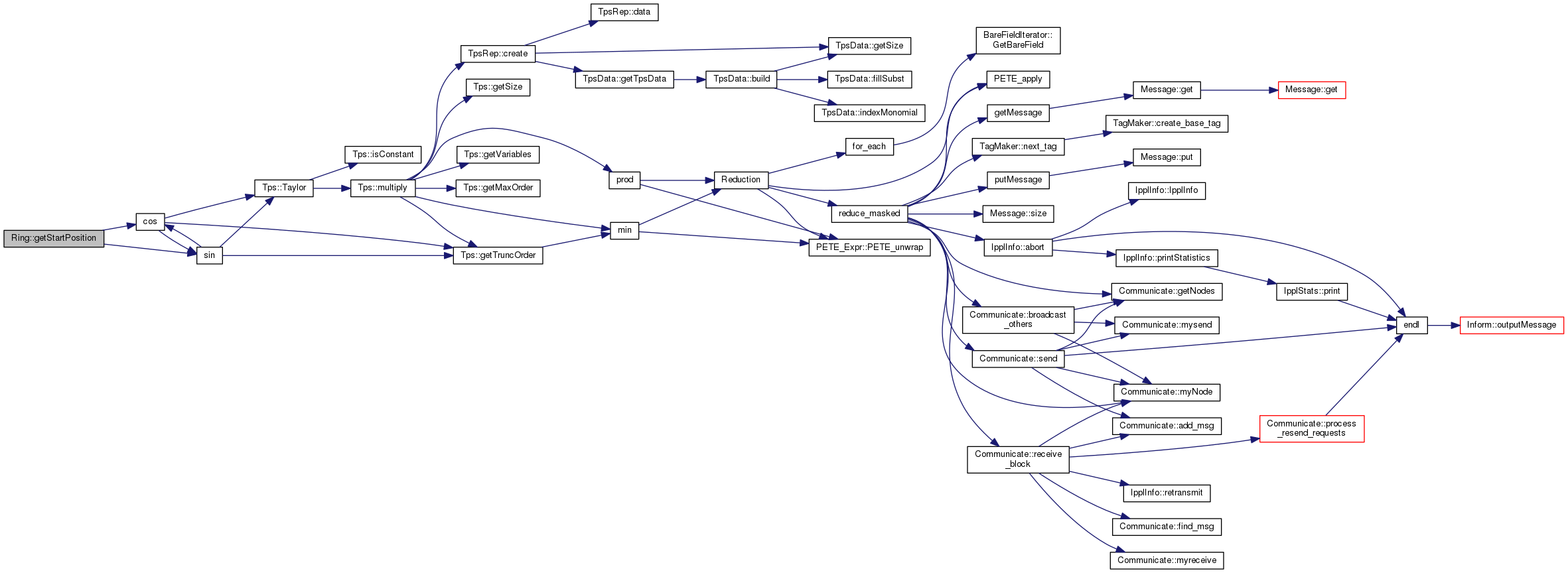

Here is the call graph for this function:

double Ring::getSymmetry ( ) const

inline

Get the rotational symmetry of the ring (number of cells)

Definition at line 282 of file Ring.h.

References symmetry_m.

Referenced by ParallelCyclotronTracker::visitRing().

void Ring::initialise	(	PartBunchBase< double, 3 > *	bunch,
		double &	startField,
		double &	endField
	)

overridevirtual

Initialise the Ring

Parameters

bunch	the particle bunch. Ring borrows this pointer (caller owns memory)
startField	- not used
endField	- not used
scaleFactor	- not used

Implements Component.

Definition at line 156 of file Ring.cpp.

Referenced by ParallelCyclotronTracker::visitRing().

void Ring::initialise ( PartBunchBase< double, 3 > * bunch )

virtual

Initialise the Ring - set the bunch and allocate a new LossDataSink

Parameters

bunch the particle bunch. Ring borrows this pointer (caller owns memory)

Definition at line 150 of file Ring.cpp.

References ElementBase::getName(), Component::online_m, setLossDataSink(), and setRefPartBunch().

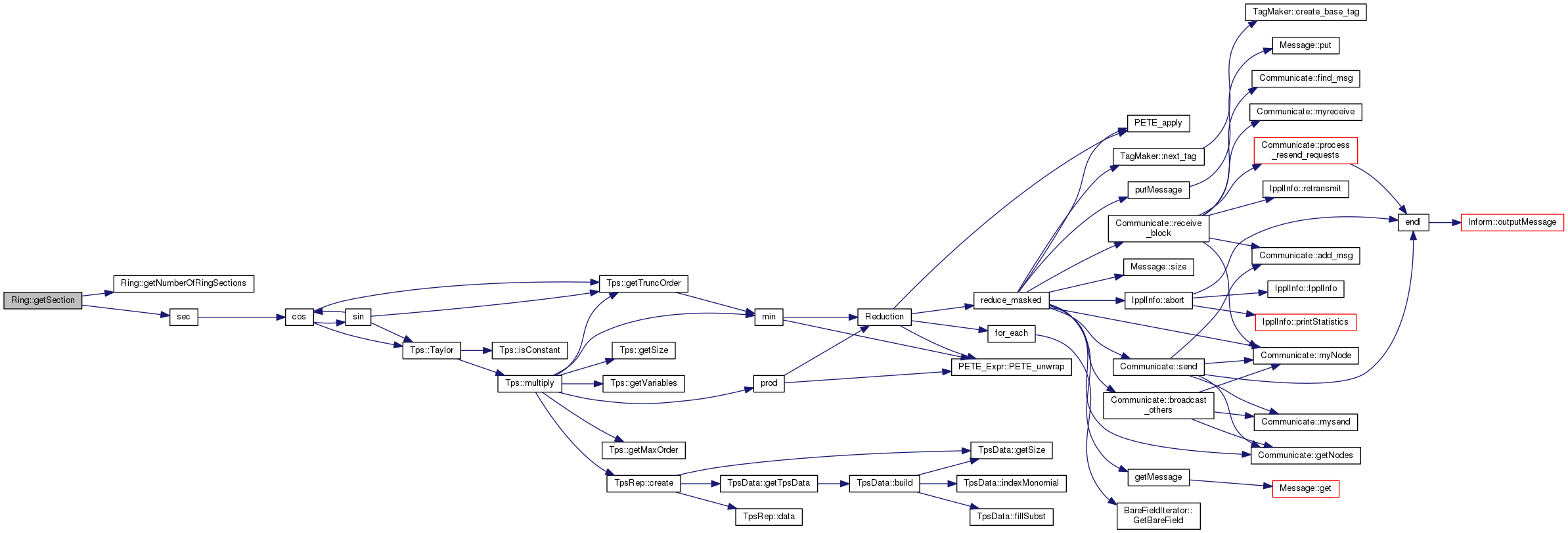

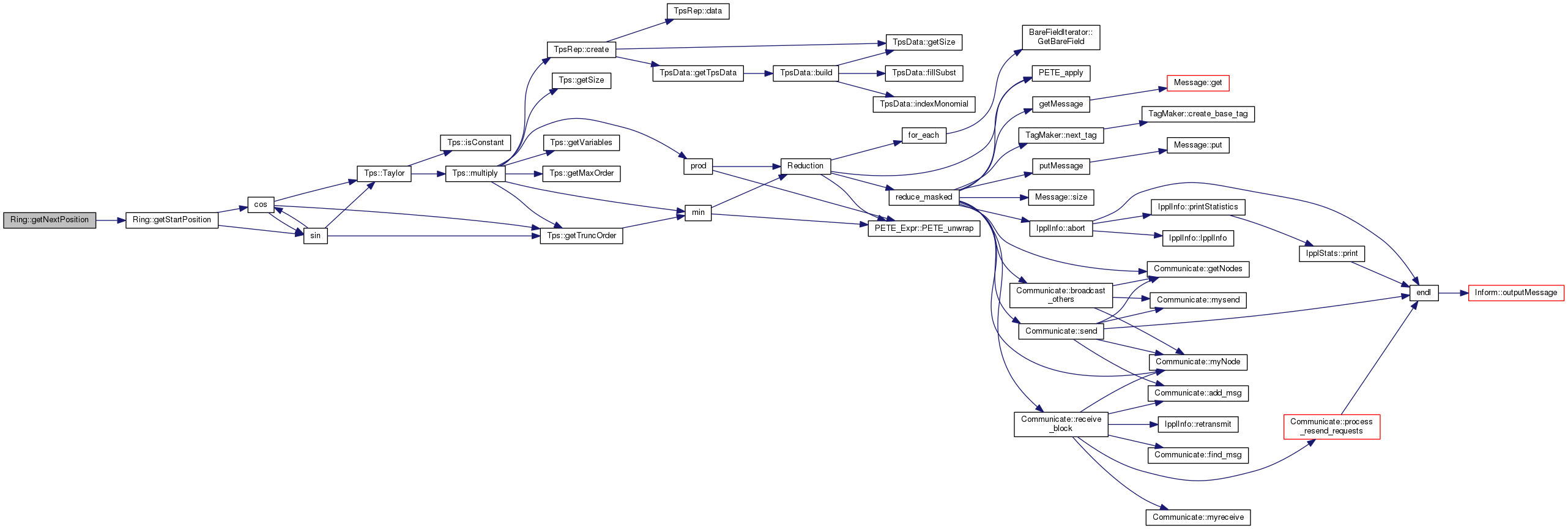

Here is the call graph for this function:

void Ring::lockRing ( )

Lock the ring

Lock the ring; apply closure checks and symmetry properties as required. Impose rule that start must be before end and switch objects around if this is not the case. Sort by startPosition azimuthal angle.

Sets isLocked_m to true. New elements can no longer be added (as it may break the symmetry/bound checking)

Definition at line 291 of file Ring.cpp.

References appendElement(), buildRingSections(), checkAndClose(), endl(), isClosed_m, isLocked_m, section_list_m, and symmetry_m.

Referenced by ParallelCyclotronTracker::execute().

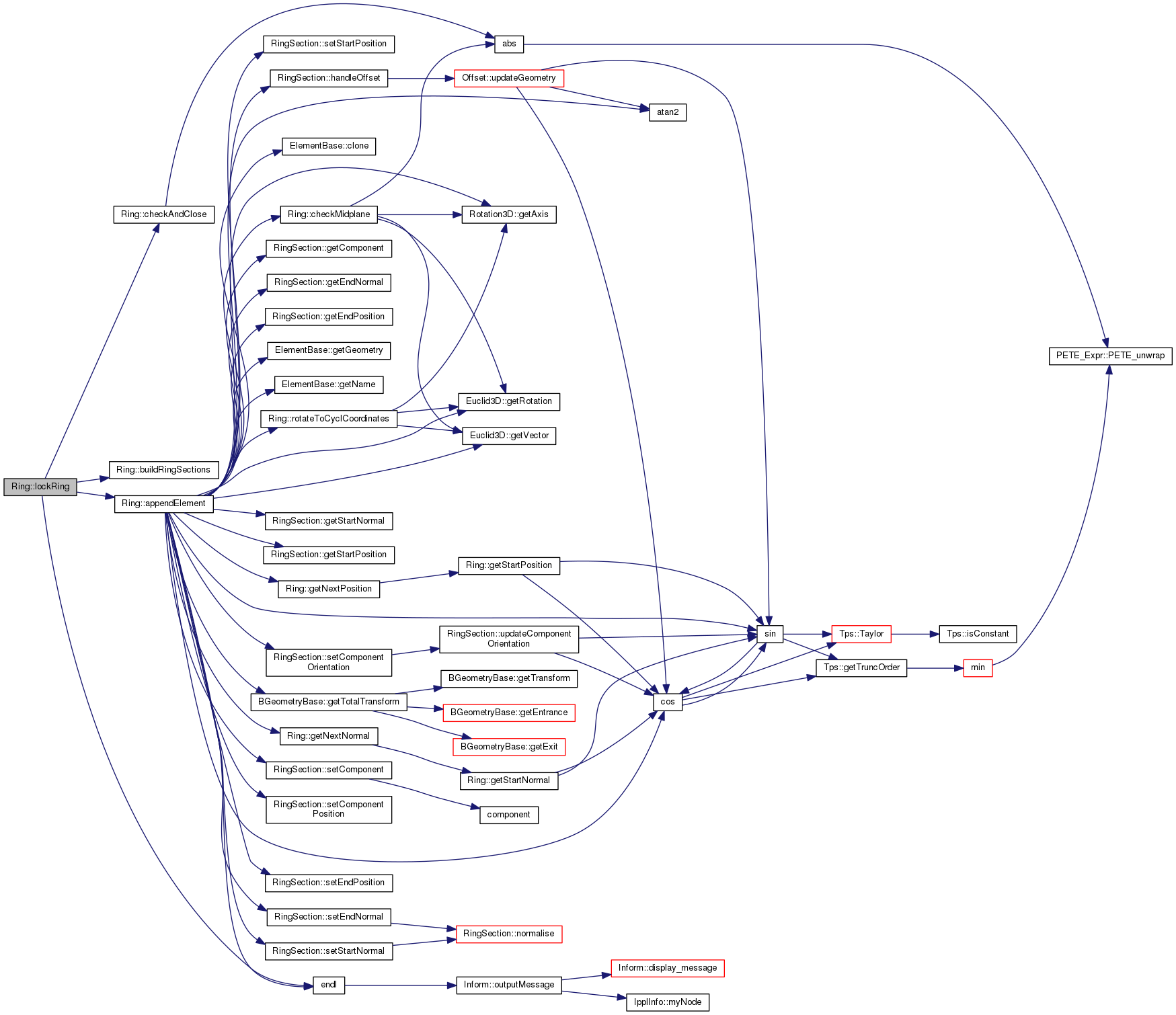

Here is the call graph for this function:

Ring& Ring::operator= ( const Ring & ring )

private

Disabled

void Ring::resetAzimuths ( )

private

Definition at line 321 of file Ring.cpp.

References section_list_m.

void Ring::rotateToCyclCoordinates ( Euclid3D & euclid3d ) const

private

Definition at line 197 of file Ring.cpp.

References Rotation3D::getAxis(), Euclid3D::getRotation(), and Euclid3D::getVector().

Referenced by appendElement().

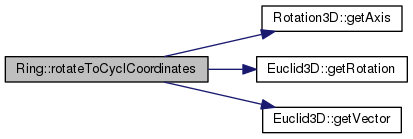

Here is the call graph for this function:

bool Ring::sectionCompare	(	RingSection const *const	sec1,
		RingSection const *const	sec2
	)

staticprivate

Definition at line 371 of file Ring.cpp.

void Ring::setBeamPhiInit ( double phiInit )

inline

Set the initial beam azimuthal angle

Definition at line 228 of file Ring.h.

References beamPhiInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setBeamPRInit ( double pRInit )

inline

Set the initial beam radial momentum

Definition at line 240 of file Ring.h.

References beamPRInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setBeamRInit ( double rInit )

inline

Set the initial beam radius

Definition at line 222 of file Ring.h.

References beamRInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setBeamThetaInit ( double thetaInit )

inline

Set the initial beam rotation relative to the tangent vector

Definition at line 234 of file Ring.h.

References beamThetaInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setHarmonicNumber ( double cyclHarm )

inline

Set the harmonic number for RF (number of bunches in the ring)

Definition at line 209 of file Ring.h.

References cyclHarm_m.

Referenced by OpalRingDefinition::update().

void Ring::setIsClosed ( bool isClosed )

inline

Set flag for closure checking

Definition at line 285 of file Ring.h.

References isClosed_m.

Referenced by OpalRingDefinition::update().

void Ring::setLatticePhiInit ( double phiInit )

inline

Set the initial element's azimuthal angle

Definition at line 252 of file Ring.h.

References latticePhiInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setLatticeRInit ( double rInit )

inline

Set the initial element's radius

Definition at line 246 of file Ring.h.

References latticeRInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setLatticeThetaInit ( double thetaInit )

inline

Set the first element's horizontal angle

Set the angle in the ring plane with respect to the tangent vector

Definition at line 267 of file Ring.h.

References latticeThetaInit_m.

Referenced by OpalRingDefinition::update().

void Ring::setLossDataSink ( LossDataSink * sink )

Set LossDataSink to sink.

Parameters

sink	The LossDataSink. Ring takes ownership of memory allocated to sink

Definition at line 140 of file Ring.cpp.

References lossDS_m.

Referenced by finalise(), and initialise().

void Ring::setRefPartBunch ( PartBunchBase< double, 3 > * bunch )

Set RefPartBunchBase<double, 3> to bunch.

Parameters

sink	The Bunch. Ring borrows memory allocated to bunch.

Note for compliance with style guide and compatibility with parent two pointer to RefPartBunchBase<double, 3> are stored; this keeps them aligned

Definition at line 167 of file Ring.cpp.

References Component::RefPartBunch_m, and refPartBunch_m.

Referenced by initialise(), and Ring().

void Ring::setRFFreq ( double rfFreq )

inline

Set the nominal RF frequency

Definition at line 216 of file Ring.h.

References rfFreq_m.

Referenced by OpalRingDefinition::update().

void Ring::setRingAperture	(	double	minR,
		double	maxR
	)

Set the ring aperture limits

minR; the minimum radius allowed during tracking. Throws if minR < 0
maxR; the maximum radius allowed during tracking. Throws if maxR < 0 Sets willDoRingAperture_m to true.

Definition at line 376 of file Ring.cpp.

References maxR2_m, minR2_m, and willDoAperture_m.

Referenced by OpalRingDefinition::update().

void Ring::setScale ( double scale )

inline

Set the scaling factor for the fields

Definition at line 279 of file Ring.h.

References scale_m.

Referenced by OpalRingDefinition::update().

void Ring::setSymmetry ( double symmetry )

inline

Set the rotational symmetry of the ring (number of cells)
