RingSection Class Reference

Component placement handler in ring geometry. More...

#include <RingSection.h>

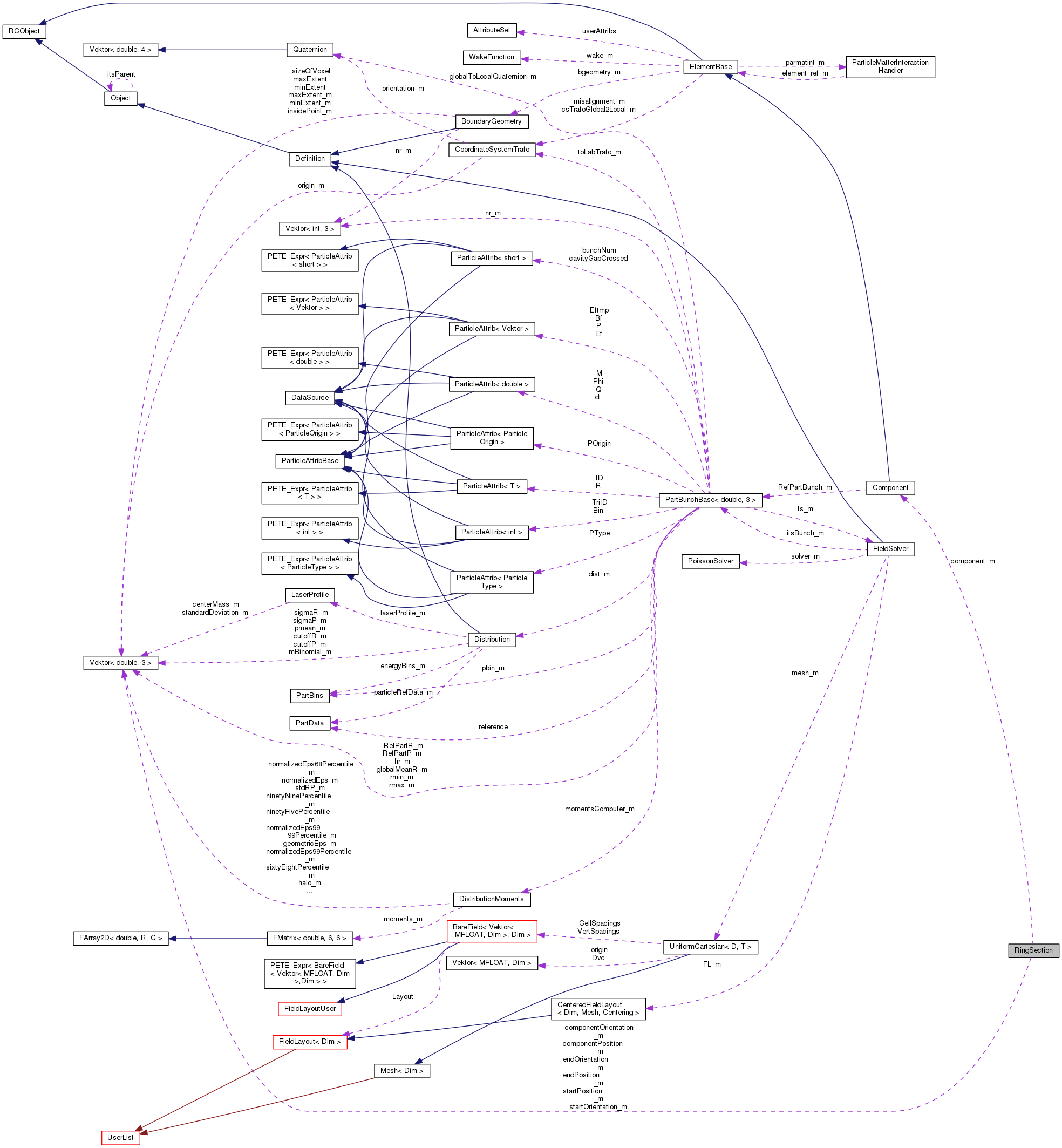

Collaboration diagram for RingSection:

Public Member Functions
	RingSection ()
	RingSection (const RingSection &sec)
RingSection &	operator= (const RingSection &sec)
	~RingSection ()
bool	isOnOrPastStartPlane (const Vector_t &pos) const
bool	isPastEndPlane (const Vector_t &pos) const
bool	getFieldValue (const Vector_t &pos, const Vector_t &centroid, const double &t, Vector_t &E, Vector_t &B) const
std::vector< Vector_t >	getVirtualBoundingBox () const
bool	doesOverlap (double phiStart, double phiEnd) const
void	setComponent (Component *component)
Component *	getComponent () const
void	setStartPosition (Vector_t pos)
Vector_t	getStartPosition () const
void	setStartNormal (Vector_t orientation)
Vector_t	getStartNormal () const
void	setEndPosition (Vector_t pos)
Vector_t	getEndPosition () const
void	setEndNormal (Vector_t orientation)
Vector_t	getEndNormal () const
void	setComponentPosition (Vector_t position)
Vector_t	getComponentPosition () const
void	setComponentOrientation (Vector_t orientation)
Vector_t	getComponentOrientation () const
void	handleOffset ()

Private Member Functions
void	rotate (Vector_t &vector) const
void	rotate_back (Vector_t &vector) const
Vector_t &	normalise (Vector_t &vector) const
void	rotateToTCoordinates (Vector_t &vec) const
void	rotateToCyclCoordinates (Vector_t &vec) const
void	updateComponentOrientation ()

Private Attributes
Component *	component_m
Vector_t	componentPosition_m
Vector_t	componentOrientation_m
Vector_t	startPosition_m
Vector_t	startOrientation_m
Vector_t	endPosition_m
Vector_t	endOrientation_m
double	sin2_m
double	cos2_m

Detailed Description

Component placement handler in ring geometry.

RingSection handles placement of a component when it is placed in a ring geometry. Here the primary index for section placement is azimuthal angle. RingSection assumes that ring objects occupy a space defined by a start plane and another end plane.

All vectors should be in cartesian coordinates (x,y,z); with z being the axis of the ring.

Parameters

component_m	component that the OpalSection wraps - this is a borrowed reference (RingSection does not own the memory)
startPosition_m	position of the centre of the start face in cylindrical polar coordinates
startOrientation_m	vector normal to the start face pointing towards the field map
endPosition_m	position of the centre of the end face in cylindrical polar coordinates
endOrientation_m	vector normal to the end face pointing away from the field map
componentPosition_m	field map position relative to component start
componentRotation_m	field map rotation R

So field maps are calculated in local coordinate system U_local = V+R*U_global where R is rotation matrix and V is componentPosition_m.

Return field values are returned like B_global = R^{-1}*B_local

Definition at line 58 of file RingSection.h.

Constructor & Destructor Documentation

RingSection::RingSection

(

)

Construct a ring section - positions, orientations etc default to 0.

Definition at line 25 of file RingSection.cpp.

RingSection::RingSection

(

const RingSection &

sec

)

Copy constructor; deepcopies the Component (and copies everything else)

Definition at line 32 of file RingSection.cpp.

RingSection::~RingSection

(

)

Destructor - does nothing

Definition at line 40 of file RingSection.cpp.

Member Function Documentation

bool RingSection::doesOverlap	(	double	phiStart,
		double	phiEnd
	)		const

Return true if the phi range overlaps bounding box elements

Definition at line 130 of file RingSection.cpp.

References cos(), getVirtualBoundingBox(), isOnOrPastStartPlane(), isPastEndPlane(), setEndNormal(), setEndPosition(), setStartNormal(), setStartPosition(), and sin().

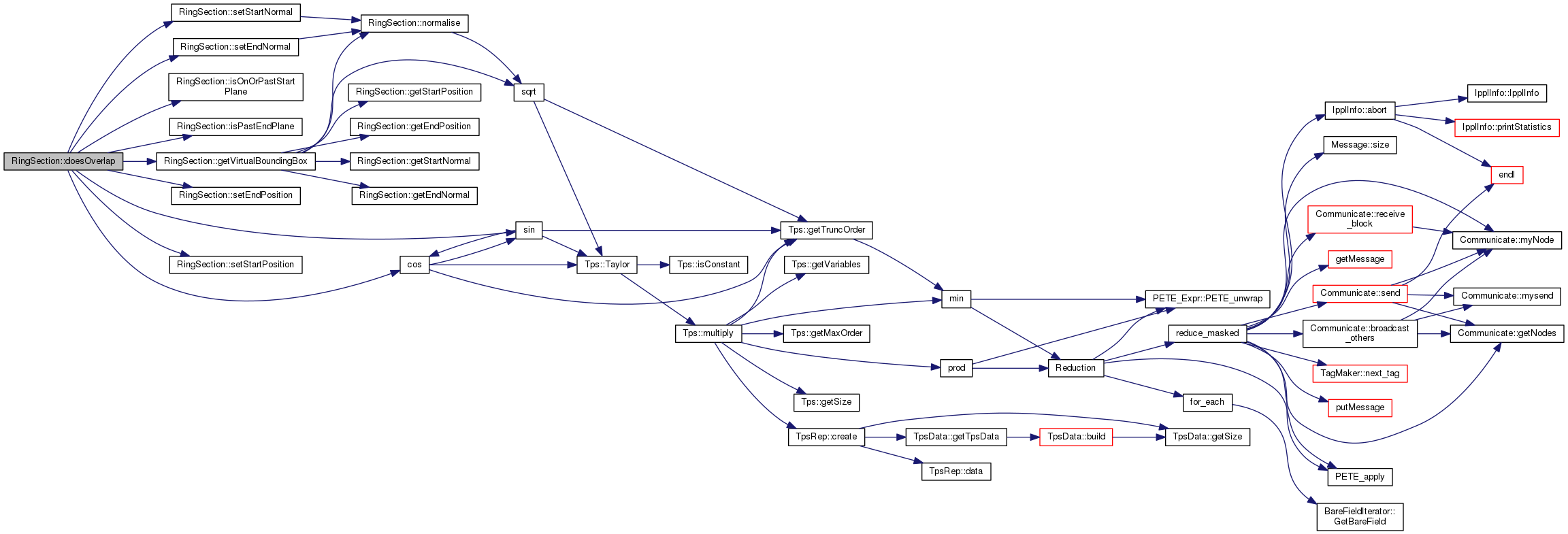

Here is the call graph for this function:

Component* RingSection::getComponent ( ) const

inline

Get the component wrapped by RingSection

Component* is not owned by caller or RingSection

Definition at line 131 of file RingSection.h.

References component_m.

Referenced by Ring::appendElement(), and PyOpal::Field::getElementName().

Vector_t RingSection::getComponentOrientation ( ) const

inline

Get the rotation for the component relative to the section start

Definition at line 167 of file RingSection.h.

References componentOrientation_m.

Vector_t RingSection::getComponentPosition ( ) const

inline

Get the displacement for the component relative to the section start

Definition at line 161 of file RingSection.h.

References componentPosition_m.

Vector_t RingSection::getEndNormal ( ) const

inline

Get the normal vector to the section end plane

Definition at line 155 of file RingSection.h.

References endOrientation_m.

Referenced by Ring::appendElement(), PyOpal::Field::getElementEndNormal(), and getVirtualBoundingBox().

Vector_t RingSection::getEndPosition ( ) const

inline

Get a position on the section end plane

Definition at line 149 of file RingSection.h.

References endPosition_m.

Referenced by Ring::appendElement(), PyOpal::Field::getElementEndPosition(), and getVirtualBoundingBox().

bool RingSection::getFieldValue	(	const Vector_t &	pos,
		const Vector_t &	centroid,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)		const

Return field value in global coordinate system

Parameters

pos	Position in global Cartesian coordinates
t	time in lab frame
centroid	Not sure what this is
E	Vector to be filled with electric field values; will always overwrite with 0. before filling field
B	Vector to be filled with magnetic field values; will always overwrite with 0. before filling field

Returns

true if pos is outside of the field bounding box, else false

Note; does not check for component == nullptr; caller must assign component_m (using setComponent) before calling this function.

Definition at line 88 of file RingSection.cpp.

References Component::apply(), component_m, componentPosition_m, rotate(), rotate_back(), rotateToCyclCoordinates(), and rotateToTCoordinates().

Here is the call graph for this function:

Vector_t RingSection::getStartNormal ( ) const

inline

Get the normal vector to the section start plane

Definition at line 143 of file RingSection.h.

References startOrientation_m.

Referenced by Ring::appendElement(), PyOpal::Field::getElementStartNormal(), and getVirtualBoundingBox().

Vector_t RingSection::getStartPosition ( ) const

inline

Get a position on the plane of the section start

Definition at line 137 of file RingSection.h.

References startPosition_m.

Referenced by Ring::appendElement(), PyOpal::Field::getElementStartPosition(), and getVirtualBoundingBox().

std::vector< Vector_t > RingSection::getVirtualBoundingBox

(

)

const

Get the "Virtual" bounding box for the RingSection

Defined by the point one radial distance along each face of the element either towards the centre of the ring or towards the outside of the ring

Return order is; start outside, start inside, end outside, end inside

An improvement would be to put the crossing point if the two faces cross before they reach the radial apertures described above.

Definition at line 112 of file RingSection.cpp.

References getEndNormal(), getEndPosition(), getStartNormal(), getStartPosition(), normalise(), and sqrt().

Referenced by doesOverlap().

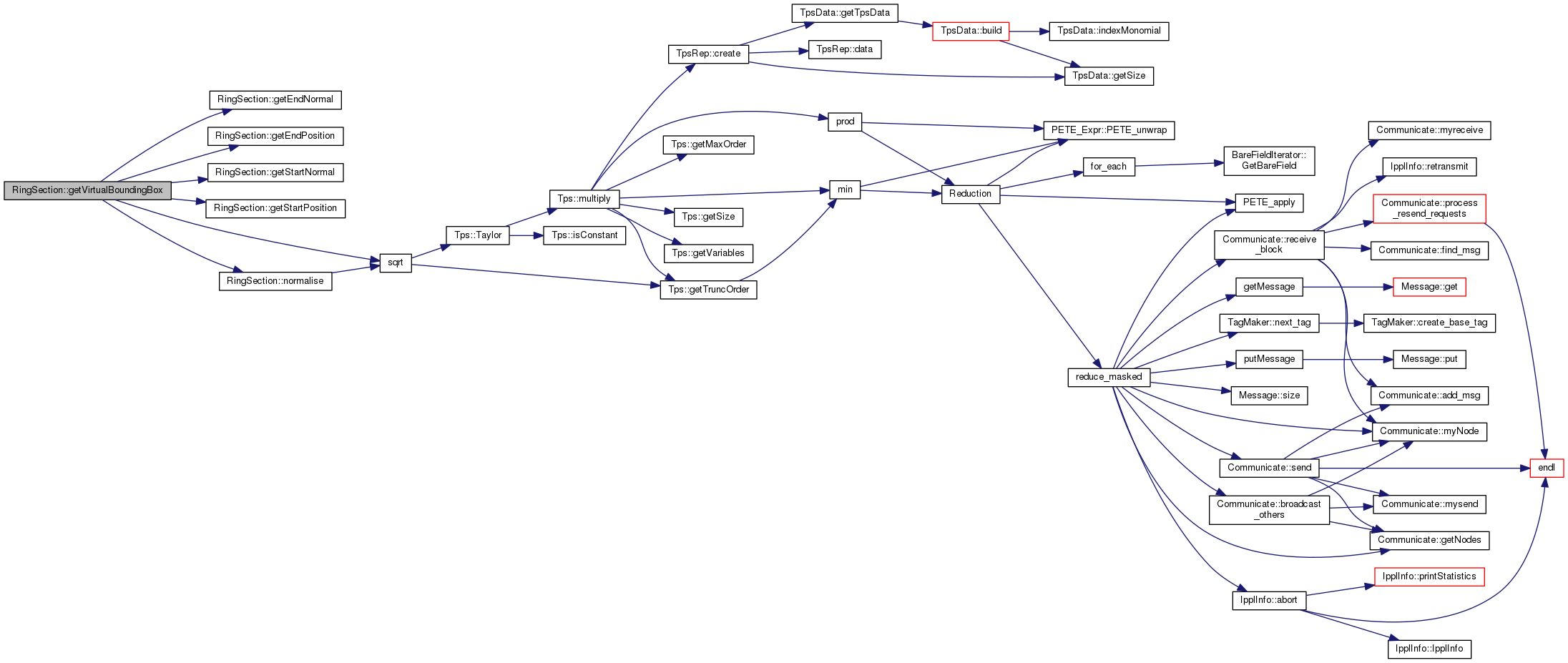

Here is the call graph for this function:

void RingSection::handleOffset

(

)

Check whether component_m is a global offset and handle

A global Offset will have initially endPosition_m and endOrientation_m set relative to the global origin, not the startPosition_m and the startOrientation_m (as OPAL expects).

If component_m is an offset with is_local == false then transform the offset from a coordinate system starting with globalStartPosition and globalStartNormal to a coordinate system starting with startPosition_m and startNormal_m.

Definition at line 187 of file RingSection.cpp.

References component_m, startOrientation_m, startPosition_m, and Offset::updateGeometry().

Referenced by Ring::appendElement().

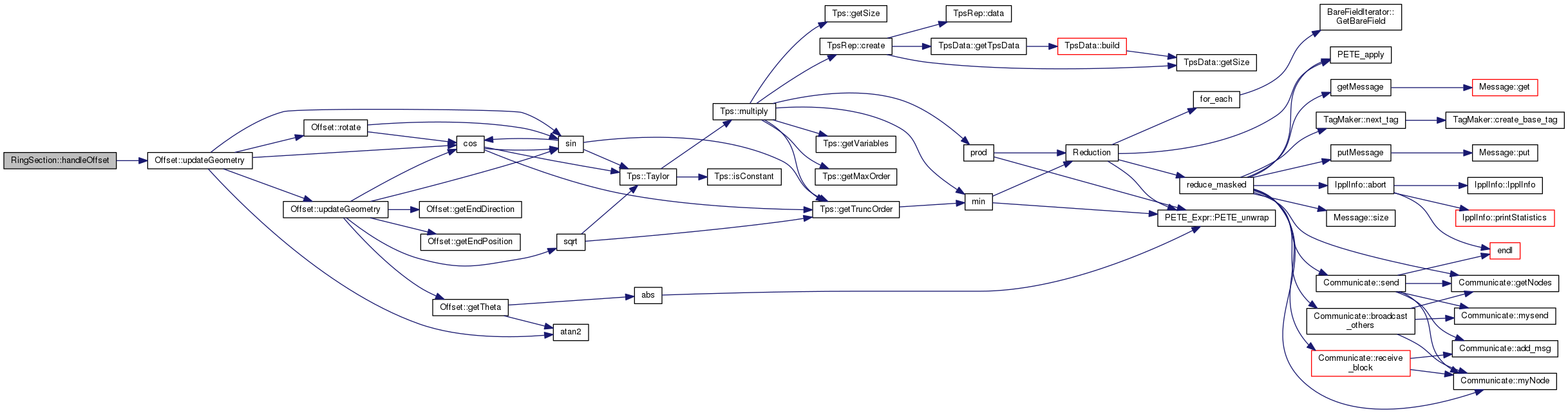

Here is the call graph for this function:

bool RingSection::isOnOrPastStartPlane

(

const Vector_t &

pos

)

const

Return true if pos is on or past start plane

Parameters

pos	position to test

Returns

true if phi(pos) >= phi(start plane), after taking account of the position and rotation of the start face

Definition at line 63 of file RingSection.cpp.

References startOrientation_m, and startPosition_m.

Referenced by doesOverlap().

bool RingSection::isPastEndPlane

(

const Vector_t &

pos

)

const

Return true if pos is past end plane

Returns

true if phi > phi(end plane), after taking account of the position and rotation of the start face

Definition at line 76 of file RingSection.cpp.

References endOrientation_m, and endPosition_m.

Referenced by doesOverlap().

Vector_t & RingSection::normalise ( Vector_t &  vector ) const

inlineprivate

Definition at line 220 of file RingSection.h.

References sqrt().

Referenced by getVirtualBoundingBox(), setEndNormal(), and setStartNormal().

Here is the call graph for this function:

RingSection & RingSection::operator=

(

const RingSection &

sec

)

Definition at line 46 of file RingSection.cpp.

References ElementBase::clone(), component_m, componentOrientation_m, componentPosition_m, endOrientation_m, endPosition_m, startOrientation_m, and startPosition_m.

Here is the call graph for this function:

void RingSection::rotate ( Vector_t &  vector ) const

private

Definition at line 175 of file RingSection.cpp.

References cos2_m, and sin2_m.

Referenced by getFieldValue().

void RingSection::rotate_back ( Vector_t &  vector ) const

private

Definition at line 181 of file RingSection.cpp.

References cos2_m, and sin2_m.

Referenced by getFieldValue().

void RingSection::rotateToCyclCoordinates ( Vector_t &  vec ) const

inlineprivate

Definition at line 235 of file RingSection.h.

Referenced by getFieldValue().

void RingSection::rotateToTCoordinates ( Vector_t &  vec ) const

inlineprivate

Definition at line 231 of file RingSection.h.

Referenced by getFieldValue().

void RingSection::setComponent ( Component *  component )

inline

Set the component wrapped by RingSection

This borrows the Component* pointer (caller is responsible for cleanup)

Definition at line 125 of file RingSection.h.

References component(), and component_m.

Referenced by Ring::appendElement().

Here is the call graph for this function:

void RingSection::setComponentOrientation ( Vector_t  orientation )

inline

Set the rotation for the component relative to the section start

Definition at line 207 of file RingSection.h.

References componentOrientation_m, and updateComponentOrientation().

Referenced by Ring::appendElement().

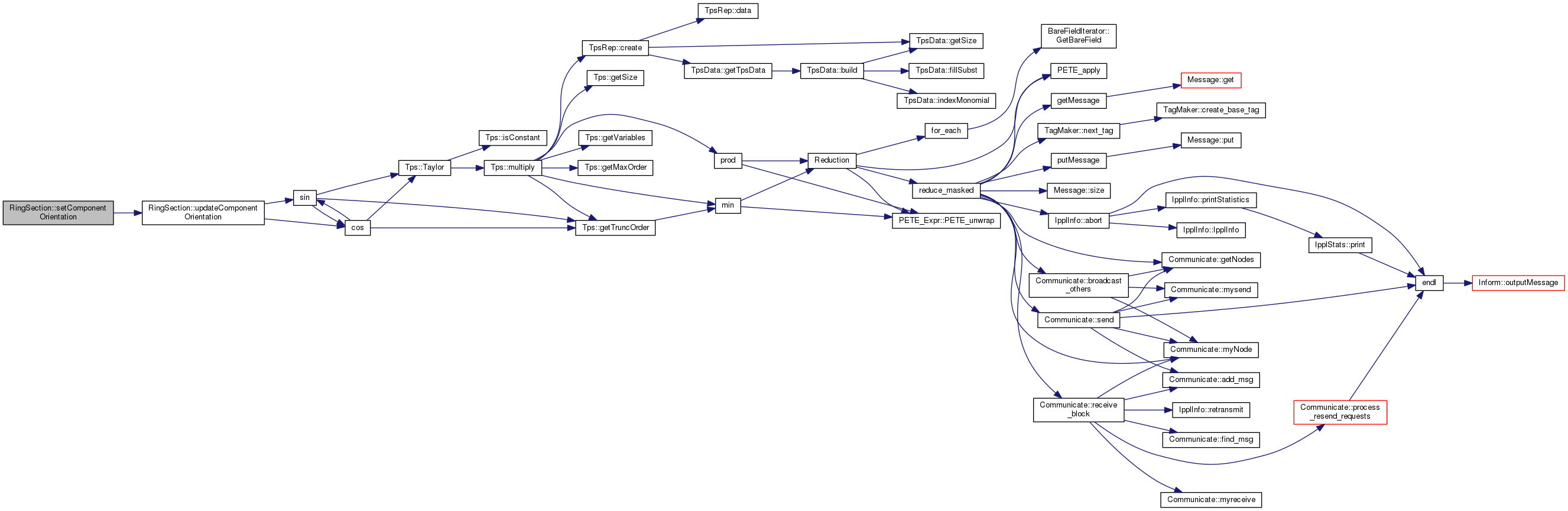

Here is the call graph for this function:

void RingSection::setComponentPosition ( Vector_t  position )

inline

Set the displacement for the component relative to the section start

Definition at line 158 of file RingSection.h.

References componentPosition_m.

Referenced by Ring::appendElement().

void RingSection::setEndNormal ( Vector_t  orientation )

inline

Set the normal vector to the section end plane

Definition at line 216 of file RingSection.h.

References endOrientation_m, and normalise().

Referenced by Ring::appendElement(), and doesOverlap().

Here is the call graph for this function:

void RingSection::setEndPosition ( Vector_t  pos )

inline

Set a position on the section end plane

Definition at line 146 of file RingSection.h.

References endPosition_m.

Referenced by Ring::appendElement(), and doesOverlap().

void RingSection::setStartNormal ( Vector_t  orientation )

inline

Set the normal vector to the section start plane

Definition at line 212 of file RingSection.h.

References normalise(), and startOrientation_m.

Referenced by Ring::appendElement(), and doesOverlap().

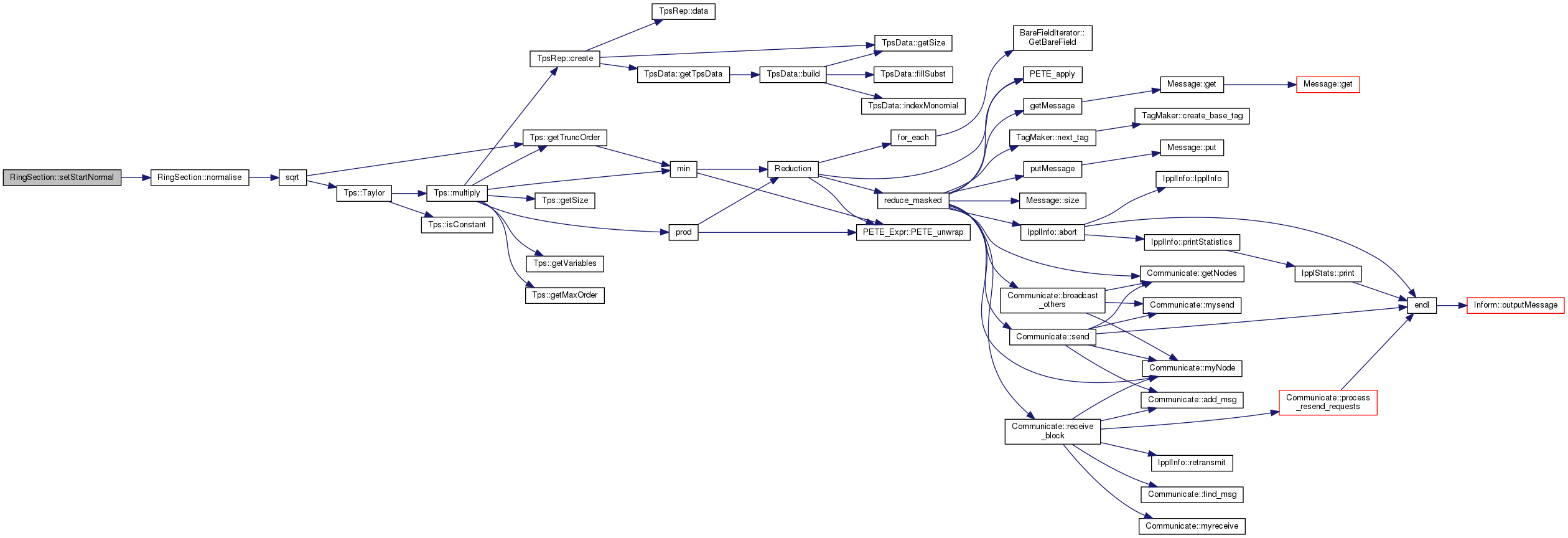

Here is the call graph for this function:

void RingSection::setStartPosition ( Vector_t  pos )

inline

Set a position on the plane of the section start

Definition at line 134 of file RingSection.h.

References startPosition_m.

Referenced by Ring::appendElement(), and doesOverlap().

void RingSection::updateComponentOrientation ( )

private

Definition at line 107 of file RingSection.cpp.

References componentOrientation_m, cos(), cos2_m, sin(), and sin2_m.

Referenced by setComponentOrientation().

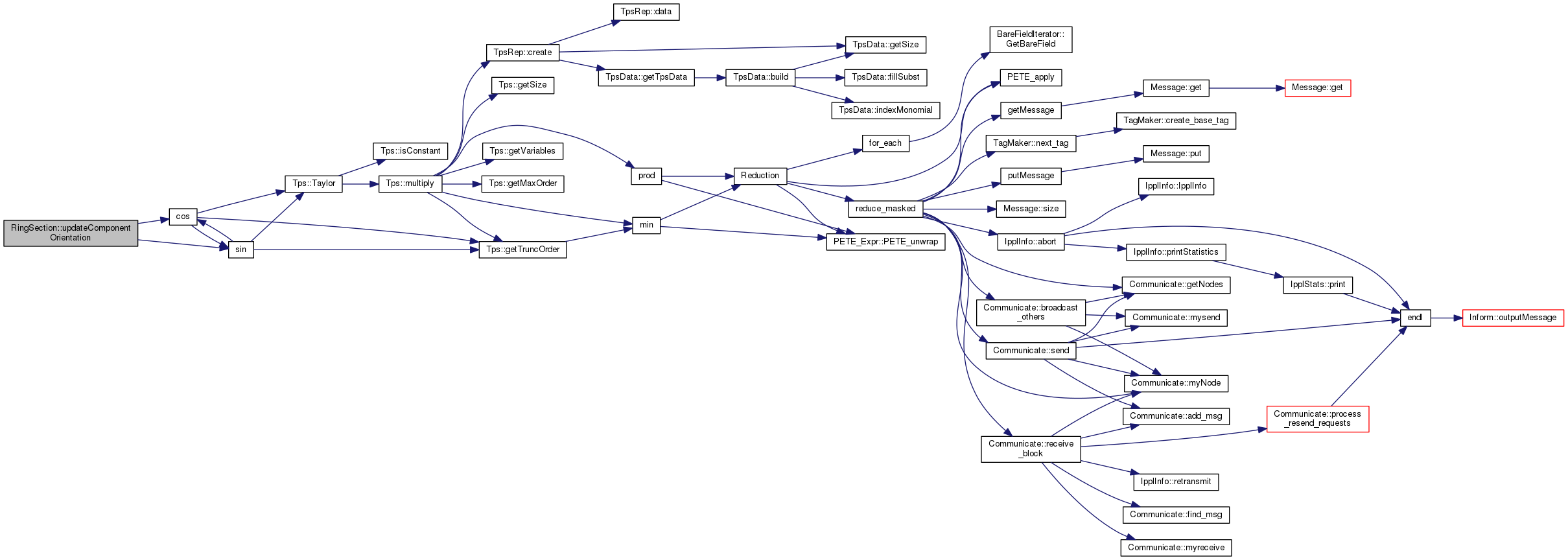

Here is the call graph for this function:

Member Data Documentation

Component* RingSection::component_m

private

Definition at line 189 of file RingSection.h.

Referenced by getComponent(), getFieldValue(), handleOffset(), operator=(), and setComponent().

Vector_t RingSection::componentOrientation_m

private

Definition at line 192 of file RingSection.h.

Referenced by getComponentOrientation(), operator=(), setComponentOrientation(), and updateComponentOrientation().

Vector_t RingSection::componentPosition_m

private

Definition at line 191 of file RingSection.h.

Referenced by getComponentPosition(), getFieldValue(), operator=(), and setComponentPosition().

double RingSection::cos2_m

private

Definition at line 202 of file RingSection.h.

Referenced by rotate(), rotate_back(), and updateComponentOrientation().

Vector_t RingSection::endOrientation_m

private

Definition at line 198 of file RingSection.h.

Referenced by getEndNormal(), isPastEndPlane(), operator=(), and setEndNormal().

Vector_t RingSection::endPosition_m

private

Definition at line 197 of file RingSection.h.

Referenced by getEndPosition(), isPastEndPlane(), operator=(), and setEndPosition().

double RingSection::sin2_m

private

Definition at line 201 of file RingSection.h.

Referenced by rotate(), rotate_back(), and updateComponentOrientation().

Vector_t RingSection::startOrientation_m

private

Definition at line 195 of file RingSection.h.

Referenced by getStartNormal(), handleOffset(), isOnOrPastStartPlane(), operator=(), and setStartNormal().

Vector_t RingSection::startPosition_m

private

Definition at line 194 of file RingSection.h.

Referenced by getStartPosition(), handleOffset(), isOnOrPastStartPlane(), operator=(), and setStartPosition().

---

The documentation for this class was generated from the following files:

• src/Classic/Utilities/RingSection.h
• src/Classic/Utilities/RingSection.cpp
