OpalBeamline Class Reference

#include <OpalBeamline.h>

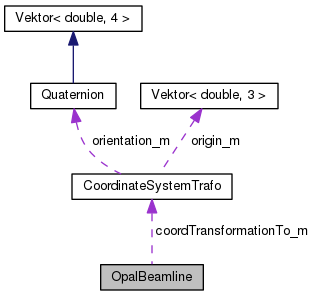

Collaboration diagram for OpalBeamline:

Public Member Functions
	OpalBeamline ()
	OpalBeamline (const Vector_t &origin, const Quaternion &rotation)
	~OpalBeamline ()
void	activateElements ()
std::set< std::shared_ptr < Component > >	getElements (const Vector_t &x)
Vector_t	transformTo (const Vector_t &r) const
Vector_t	transformFrom (const Vector_t &r) const
Vector_t	rotateTo (const Vector_t &r) const
Vector_t	rotateFrom (const Vector_t &r) const
Vector_t	transformToLocalCS (const std::shared_ptr< Component > &comp, const Vector_t &r) const
Vector_t	transformFromLocalCS (const std::shared_ptr< Component > &comp, const Vector_t &r) const
Vector_t	rotateToLocalCS (const std::shared_ptr< Component > &comp, const Vector_t &r) const
Vector_t	rotateFromLocalCS (const std::shared_ptr< Component > &comp, const Vector_t &r) const
CoordinateSystemTrafo	getCSTrafoLab2Local (const std::shared_ptr< Component > &comp) const
CoordinateSystemTrafo	getCSTrafoLab2Local () const
CoordinateSystemTrafo	getMisalignment (const std::shared_ptr< Component > &comp) const
double	getStart (const Vector_t &) const
double	getEnd (const Vector_t &) const
void	switchElements (const double &, const double &, const double &kineticEnergy, const bool &nomonitors=false)
void	switchElementsOff ()
ParticleMatterInteractionHandler *	getParticleMatterInteractionHandler (const unsigned int &)
BoundaryGeometry *	getBoundaryGeometry (const unsigned int &)
unsigned long	getFieldAt (const unsigned int &, const Vector_t &, const long &, const double &, Vector_t &, Vector_t &)
unsigned long	getFieldAt (const Vector_t &, const Vector_t &, const double &, Vector_t &, Vector_t &)
template<class T >
void	visit (const T &, BeamlineVisitor &, PartBunchBase< double, 3 > *)
void	prepareSections ()
void	positionElementRelative (std::shared_ptr< ElementBase >)
void	compute3DLattice ()
void	save3DLattice ()
void	save3DInput ()
void	print (Inform &) const
FieldList	getElementByType (ElementType)
void	swap (OpalBeamline &rhs)
void	merge (OpalBeamline &rhs)
bool	containsSource ()
template<>
void	visit (const Source &element, BeamlineVisitor &, PartBunchBase< double, 3 > *bunch)
template<>
void	visit (const Marker &, BeamlineVisitor &, PartBunchBase< double, 3 > *)
template<>
void	visit (const Septum &element, BeamlineVisitor &, PartBunchBase< double, 3 > *)

Private Attributes
FieldList	elements_m
bool	prepared_m
bool	containsSource_m
CoordinateSystemTrafo	coordTransformationTo_m

Detailed Description

Definition at line 40 of file OpalBeamline.h.

Constructor & Destructor Documentation

OpalBeamline::OpalBeamline

(

)

Definition at line 31 of file OpalBeamline.cpp.

OpalBeamline::OpalBeamline	(	const Vector_t &	origin,
		const Quaternion &	rotation
	)

Definition at line 38 of file OpalBeamline.cpp.

OpalBeamline::~OpalBeamline

(

)

Definition at line 47 of file OpalBeamline.cpp.

References elements_m.

Member Function Documentation

void OpalBeamline::activateElements

(

)

Definition at line 594 of file OpalBeamline.cpp.

References elements_m, end, Units::eV2MeV, BendBase::getDesignEnergy(), it, RBEND, and SBEND.

Referenced by ParallelTTracker::execute().

Here is the call graph for this function:

void OpalBeamline::compute3DLattice

(

)

Definition at line 205 of file OpalBeamline.cpp.

References abs(), Quaternion::conjugate(), coordTransformationTo_m, cos(), elements_m, end, euclidean_norm(), BendBase::getBendAngle(), BendBase::getChordLength(), BendBase::getDesignPath(), BendBase::getEntranceAngle(), ElementBase::getRotationAboutZ(), Options::idealized, it, RBEND, RBEND3D, Quaternion::rotate(), SBEND, sin(), and SOURCE.

Referenced by ParallelTTracker::prepareSections(), ParallelTTracker::visitBeamline(), and ThickTracker::visitBeamline().

Here is the call graph for this function:

bool OpalBeamline::containsSource ( )

inline

Definition at line 205 of file OpalBeamline.h.

References containsSource_m.

Referenced by ParallelTTracker::execute(), and ParallelTTracker::findStartPosition().

BoundaryGeometry* OpalBeamline::getBoundaryGeometry

(

const unsigned int &

)

CoordinateSystemTrafo OpalBeamline::getCSTrafoLab2Local ( const std::shared_ptr< Component > &  comp ) const

inline

Definition at line 190 of file OpalBeamline.h.

Referenced by ParallelTTracker::computeExternalFields(), ParallelTTracker::emitParticles(), ParallelTTracker::execute(), OrbitThreader::integrate(), and ParallelTTracker::updateReferenceParticle().

CoordinateSystemTrafo OpalBeamline::getCSTrafoLab2Local ( ) const

inline

Definition at line 195 of file OpalBeamline.h.

References coordTransformationTo_m.

FieldList OpalBeamline::getElementByType

(

ElementType

type

)

Definition at line 178 of file OpalBeamline.cpp.

References ANY, elements_m, and type.

Referenced by ThickTracker::checkElementOrder_m(), OrbitThreader::computeBoundingBox(), OrbitThreader::execute(), ThickTracker::fillGaps_m(), OrbitThreader::processElementRegister(), ParallelTTracker::updateRFElement(), and ParallelTTracker::writePhaseSpace().

std::set< std::shared_ptr< Component > > OpalBeamline::getElements

(

const Vector_t &

x

)

Definition at line 51 of file OpalBeamline.cpp.

References elements_m, end, and it.

Referenced by ParallelTTracker::autophaseCavities(), OrbitThreader::execute(), getFieldAt(), OrbitThreader::integrate(), OrbitThreader::trackBack(), and ParallelTTracker::updateReferenceParticle().

double OpalBeamline::getEnd

(

const Vector_t &

)

const

unsigned long OpalBeamline::getFieldAt	(	const unsigned int &	,
		const Vector_t &	,
		const long &	,
		const double &	,
		Vector_t &	,
		Vector_t &
	)

Definition at line 67 of file OpalBeamline.cpp.

Referenced by ThickTracker::dump_m(), ParallelTTracker::emitParticles(), and ParallelTTracker::writePhaseSpace().

unsigned long OpalBeamline::getFieldAt	(	const Vector_t &	position,
		const Vector_t &	momentum,
		const double &	t,
		Vector_t &	Ef,
		Vector_t &	Bf
	)

Definition at line 74 of file OpalBeamline.cpp.

References CCOLLIMATOR, end, getElements(), it, MARKER, MONITOR, rotateFromLocalCS(), rotateToLocalCS(), transformToLocalCS(), and type.

Here is the call graph for this function:

CoordinateSystemTrafo OpalBeamline::getMisalignment ( const std::shared_ptr< Component > &  comp ) const

inline

Definition at line 200 of file OpalBeamline.h.

Referenced by ParallelTTracker::computeExternalFields().

ParticleMatterInteractionHandler* OpalBeamline::getParticleMatterInteractionHandler

(

const unsigned int &

)

double OpalBeamline::getStart

(

const Vector_t &

)

const

void OpalBeamline::merge

(

OpalBeamline &

rhs

)

Definition at line 169 of file OpalBeamline.cpp.

References containsSource_m, elements_m, and prepared_m.

void OpalBeamline::positionElementRelative

(

std::shared_ptr< ElementBase >

element

)

Definition at line 192 of file OpalBeamline.cpp.

References coordTransformationTo_m.

Referenced by visit().

void OpalBeamline::prepareSections

(

)

Definition at line 151 of file OpalBeamline.cpp.

References elements_m, prepared_m, and ClassicField::SortAsc().

Referenced by ThickTracker::prepareSections(), ParallelTTracker::prepareSections(), ParallelTTracker::visitBeamline(), and ThickTracker::visitBeamline().

Here is the call graph for this function:

void OpalBeamline::print

(

Inform &

)

const

Definition at line 160 of file OpalBeamline.cpp.

Vector_t OpalBeamline::rotateFrom ( const Vector_t &  r ) const

inline

Definition at line 161 of file OpalBeamline.h.

References coordTransformationTo_m, and CoordinateSystemTrafo::rotateFrom().

Here is the call graph for this function:

Vector_t OpalBeamline::rotateFromLocalCS ( const std::shared_ptr< Component > &  comp, const Vector_t &  r  ) const

inline

Definition at line 184 of file OpalBeamline.h.

Referenced by getFieldAt(), and OrbitThreader::integrate().

Vector_t OpalBeamline::rotateTo ( const Vector_t &  r ) const

inline

Definition at line 156 of file OpalBeamline.h.

References coordTransformationTo_m, and CoordinateSystemTrafo::rotateTo().

Here is the call graph for this function:

Vector_t OpalBeamline::rotateToLocalCS ( const std::shared_ptr< Component > &  comp, const Vector_t &  r  ) const

inline

Definition at line 178 of file OpalBeamline.h.

Referenced by OrbitThreader::autophaseCavities(), ParallelTTracker::autophaseCavities(), getFieldAt(), OrbitThreader::integrate(), and OrbitThreader::registerElement().

void OpalBeamline::save3DInput

(

)

Definition at line 521 of file OpalBeamline.cpp.

References abs(), angle(), Util::combineFilePath(), Quaternion::conjugate(), Physics::e, elements_m, end, endl(), OpalData::getAuxiliaryOutputDirectory(), BendBase::getBendAngle(), BendBase::getEntranceAngle(), Bend2D::getExitAngle(), OpalData::getInputBasename(), OpalData::getInstance(), CoordinateSystemTrafo::getOrigin(), CoordinateSystemTrafo::getRotation(), Util::getTaitBryantAngles(), it, IpplInfo::myNode(), Units::rad2deg, RBEND, and SBEND.

Referenced by ParallelTTracker::prepareSections().

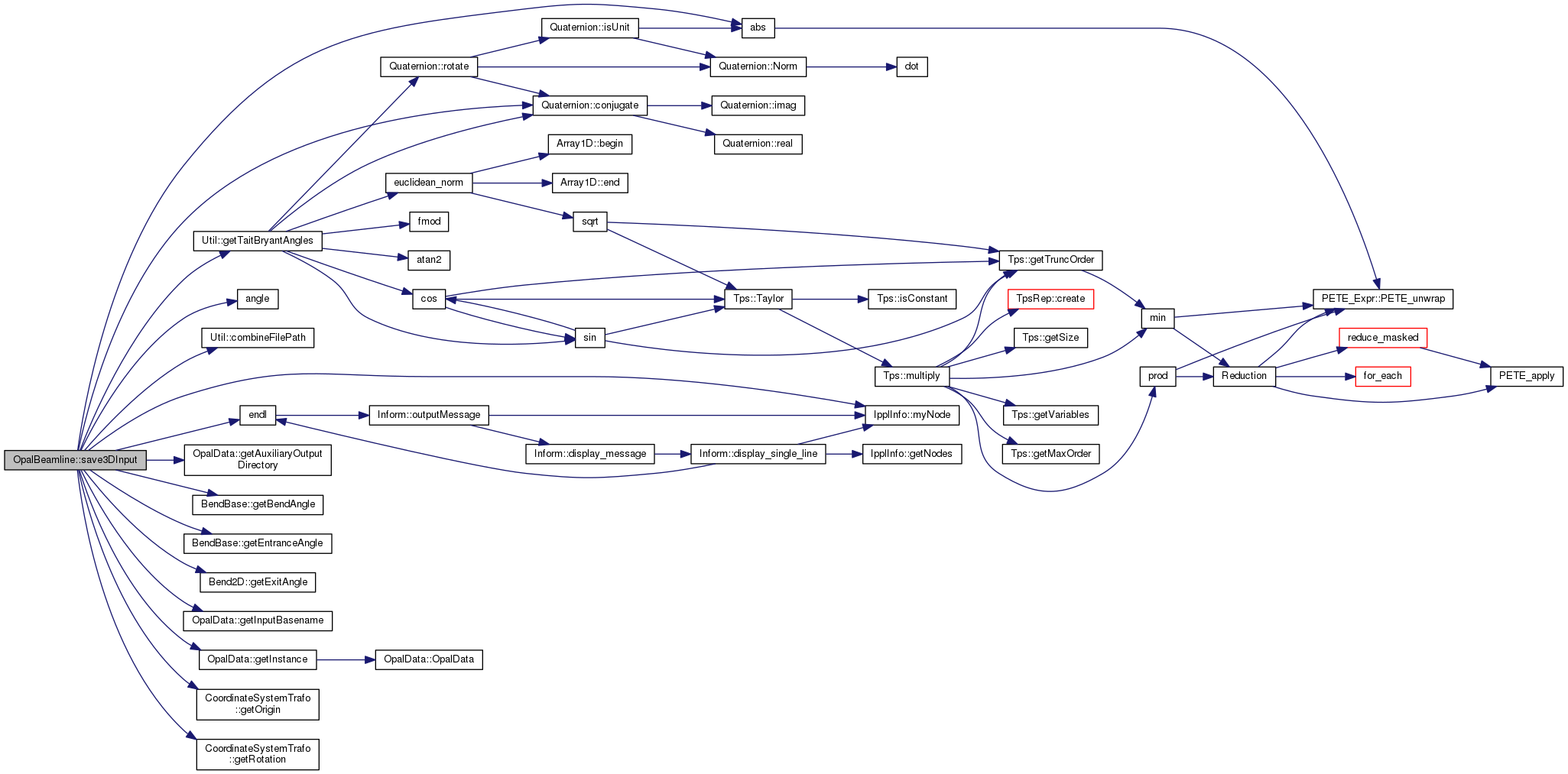

Here is the call graph for this function:

void OpalBeamline::save3DLattice

(

)

Definition at line 352 of file OpalBeamline.cpp.

References abs(), MeshGenerator::add(), OpalData::APPEND, Util::combineFilePath(), elements_m, end, endl(), floor(), OpalData::getAuxiliaryOutputDirectory(), Bend2D::getBeginToEnd_local(), BendBase::getBendAngle(), BendBase::getDesignPath(), OpalData::getInputBasename(), OpalData::getInstance(), OpalData::getOpenMode(), CoordinateSystemTrafo::getOrigin(), it, max(), IpplInfo::myNode(), ClassicField::order_m, Units::rad2deg, RBEND, SBEND, ClassicField::SortAsc(), and MeshGenerator::write().

Referenced by ParallelTTracker::prepareSections().

Here is the call graph for this function:

void OpalBeamline::swap

(

OpalBeamline &

rhs

)

Definition at line 163 of file OpalBeamline.cpp.

References coordTransformationTo_m, elements_m, and prepared_m.

Referenced by ParallelTTracker::visitBeamline(), and ThickTracker::visitBeamline().

void OpalBeamline::switchElements	(	const double &	min,
		const double &	max,
		const double &	kineticEnergy,
		const bool &	nomonitors = false
	)

Definition at line 112 of file OpalBeamline.cpp.

References DEGRADER, elements_m, min(), and MONITOR.

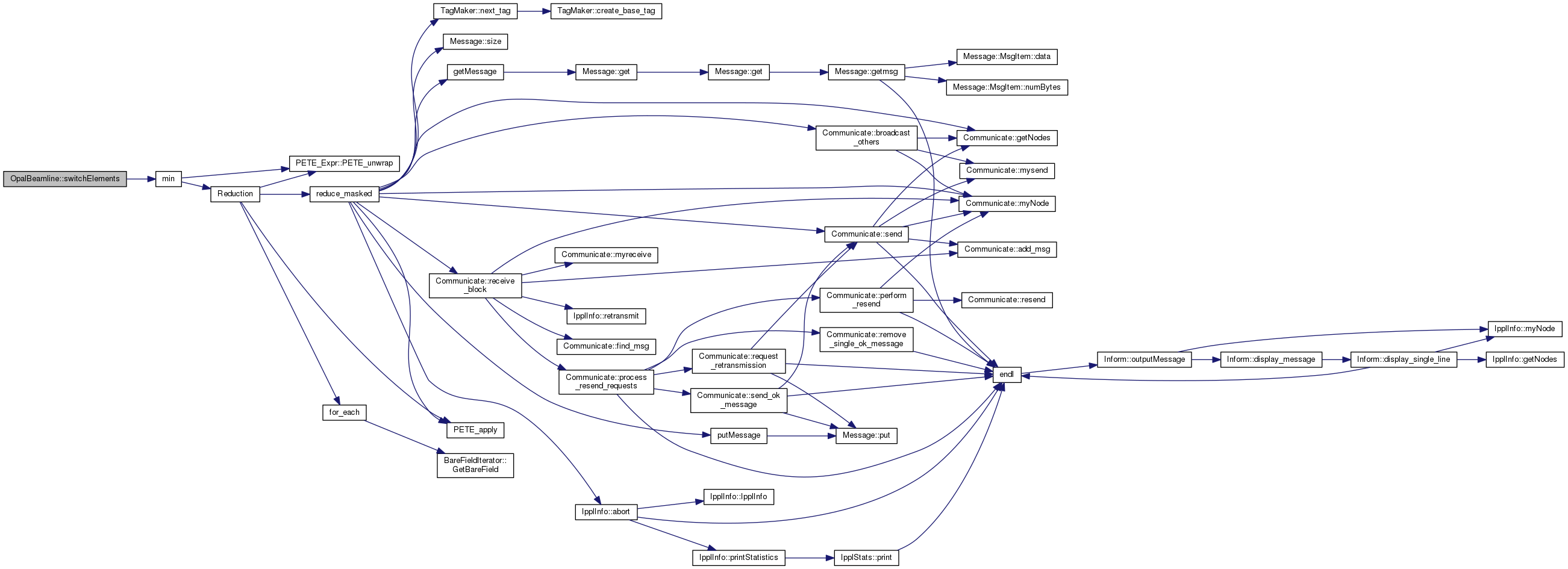

Here is the call graph for this function:

void OpalBeamline::switchElementsOff

(

)

Definition at line 146 of file OpalBeamline.cpp.

References elements_m.

Referenced by ParallelTTracker::execute().

Vector_t OpalBeamline::transformFrom ( const Vector_t &  r ) const

inline

Definition at line 151 of file OpalBeamline.h.

References coordTransformationTo_m, and CoordinateSystemTrafo::transformFrom().

Here is the call graph for this function:

Vector_t OpalBeamline::transformFromLocalCS ( const std::shared_ptr< Component > &  comp, const Vector_t &  r  ) const

inline

Definition at line 172 of file OpalBeamline.h.

Vector_t OpalBeamline::transformTo ( const Vector_t &  r ) const

inline

Definition at line 146 of file OpalBeamline.h.

References coordTransformationTo_m, and CoordinateSystemTrafo::transformTo().

Here is the call graph for this function:

Vector_t OpalBeamline::transformToLocalCS ( const std::shared_ptr< Component > &  comp, const Vector_t &  r  ) const

inline

Definition at line 166 of file OpalBeamline.h.

Referenced by OrbitThreader::autophaseCavities(), ParallelTTracker::autophaseCavities(), getFieldAt(), OrbitThreader::integrate(), and OrbitThreader::registerElement().

template<class T >

void OpalBeamline::visit ( const T &  element, BeamlineVisitor &  , PartBunchBase< double, 3 > *  bunch  )

inline

Definition at line 105 of file OpalBeamline.h.

References elements_m, and positionElementRelative().

Referenced by ParallelTTracker::visitCCollimator(), ParallelTTracker::visitCorrector(), ParallelTTracker::visitDegrader(), ParallelTTracker::visitDrift(), ThickTracker::visitDrift(), ParallelTTracker::visitFlexibleCollimator(), ParallelTTracker::visitMarker(), ParallelTTracker::visitMonitor(), ParallelTTracker::visitMultipole(), ThickTracker::visitMultipole(), ParallelTTracker::visitMultipoleT(), ParallelTTracker::visitProbe(), ParallelTTracker::visitRBend(), ParallelTTracker::visitRBend3D(), ParallelTTracker::visitRFCavity(), ParallelTTracker::visitSBend(), ThickTracker::visitSBend(), ParallelTTracker::visitSeptum(), ParallelTTracker::visitSolenoid(), ParallelTTracker::visitSource(), ParallelTTracker::visitTravelingWave(), and ParallelTTracker::visitVacuum().

Here is the call graph for this function:

template<>

void OpalBeamline::visit ( const Source &  element, BeamlineVisitor &  , PartBunchBase< double, 3 > *  bunch  )

inline

Definition at line 121 of file OpalBeamline.h.

template<>

void OpalBeamline::visit ( const Marker &  , BeamlineVisitor &  , PartBunchBase< double, 3 > *    )

inline

Definition at line 137 of file OpalBeamline.h.

template<>

void OpalBeamline::visit ( const Septum &  element, BeamlineVisitor &  , PartBunchBase< double, 3 > *    )

inline

Definition at line 141 of file OpalBeamline.h.

References endl(), and WARNMSG.

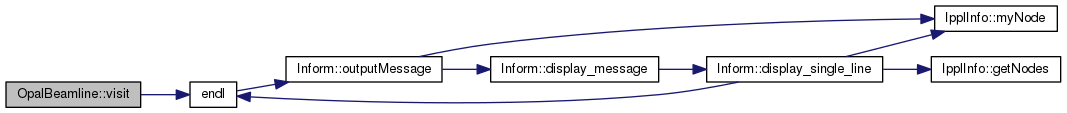

Here is the call graph for this function:

Member Data Documentation

bool OpalBeamline::containsSource_m

private

Definition at line 99 of file OpalBeamline.h.

Referenced by containsSource(), and merge().

CoordinateSystemTrafo OpalBeamline::coordTransformationTo_m

private

Definition at line 101 of file OpalBeamline.h.

Referenced by compute3DLattice(), getCSTrafoLab2Local(), positionElementRelative(), rotateFrom(), rotateTo(), swap(), transformFrom(), and transformTo().

FieldList OpalBeamline::elements_m

private

Definition at line 97 of file OpalBeamline.h.

Referenced by activateElements(), compute3DLattice(), getElementByType(), getElements(), merge(), prepareSections(), save3DInput(), save3DLattice(), swap(), switchElements(), switchElementsOff(), visit(), and ~OpalBeamline().

bool OpalBeamline::prepared_m

private

Definition at line 98 of file OpalBeamline.h.

Referenced by merge(), prepareSections(), and swap().

---

The documentation for this class was generated from the following files:

• src/Elements/OpalBeamline.h
• src/Elements/OpalBeamline.cpp
