#include <VerticalFFAMagnet.h>

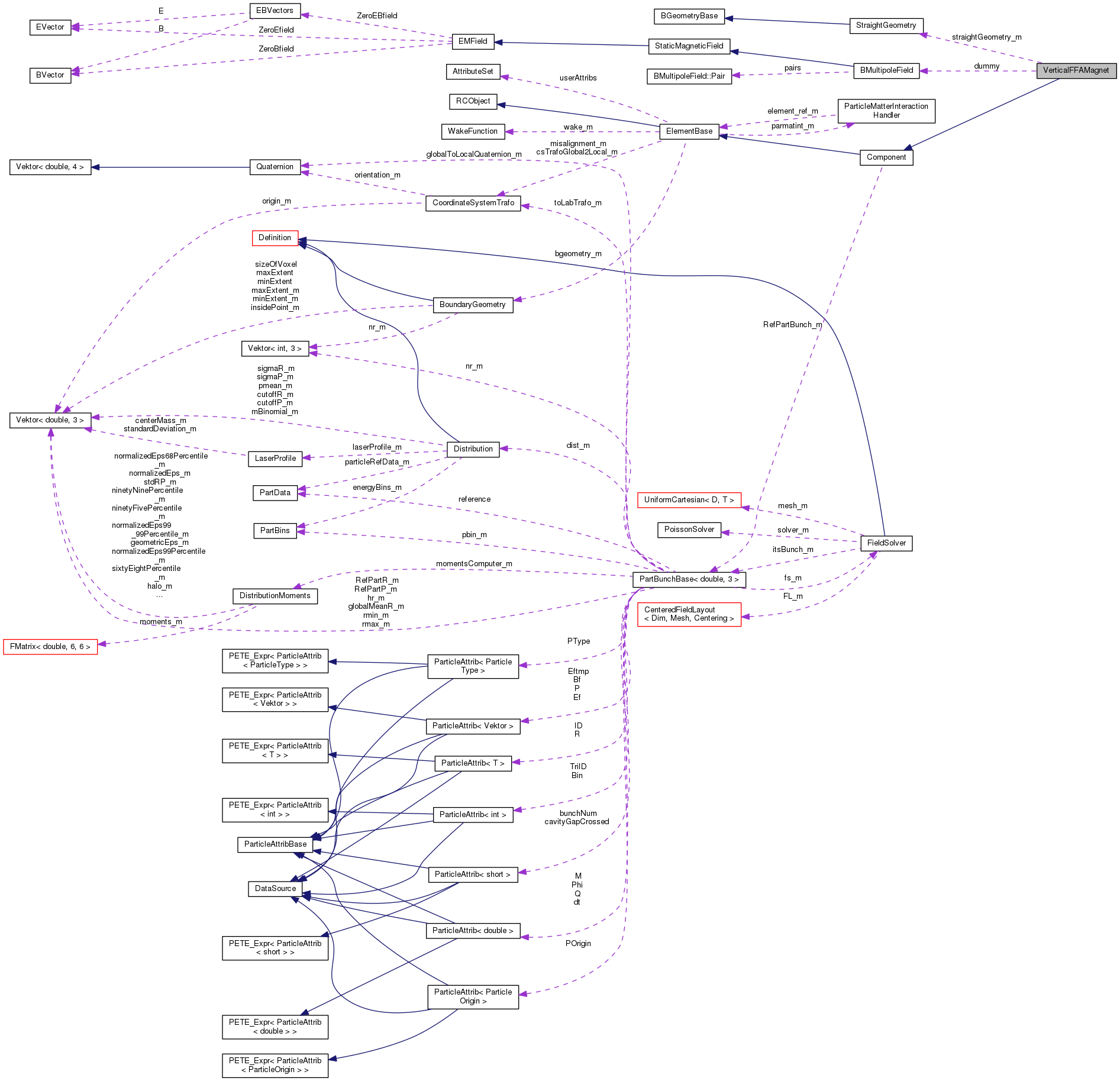

Inheritance diagram for VerticalFFAMagnet:

Collaboration diagram for VerticalFFAMagnet:

Public Member Functions
	VerticalFFAMagnet (const std::string &name)

	~VerticalFFAMagnet ()

ElementBase *	clone () const

bool	apply (const size_t &i, const double &t, Vector_t &E, Vector_t &B)

bool	apply (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B)

bool	getFieldValue (const Vector_t &R, Vector_t &B) const

void	initialise (PartBunchBase< double, 3 > *bunch, double &startField, double &endField)

void	initialise ()

void	finalise ()

bool	bends () const

void	getDimensions (double &, double &) const

BGeometryBase &	getGeometry ()

const BGeometryBase &	getGeometry () const

EMField &	getField ()

const EMField &	getField () const

void	accept (BeamlineVisitor &visitor) const

endfieldmodel::EndFieldModel *	getEndField () const

void	setEndField (endfieldmodel::EndFieldModel *endField)

size_t	getMaxOrder () const

void	setMaxOrder (size_t maxOrder)

double	getB0 () const

void	setB0 (double Bz)

double	getFieldIndex () const

void	setFieldIndex (double index)

double	getNegativeVerticalExtent () const

void	setNegativeVerticalExtent (double negativeExtent)

double	getPositiveVerticalExtent () const

void	setPositiveVerticalExtent (double positiveExtent)

double	getBBLength () const

void	setBBLength (double bbLength)

double	getWidth () const

void	setWidth (double width)

std::vector< std::vector < double > >	getDfCoefficients () const

Public Member Functions inherited from Component
	Component (const std::string &name)
	Constructor with given name. More...

	Component ()

	Component (const Component &right)

virtual	~Component ()

EVector	Efield (const Point3D &P) const
	Return the field in a point. More...

BVector	Bfield (const Point3D &P) const
	Return the field in a point. More...

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point. More...

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point. More...

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point. More...

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point. More...

virtual bool	applyToReferenceParticle (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B)

virtual bool	getPotential (const Vector_t &, const double &, Vector_t &, double &)

virtual double	getDesignEnergy () const

virtual void	setDesignEnergy (const double &energy, bool changeable=true)

virtual void	goOnline (const double &kineticEnergy)

virtual void	goOffline ()

virtual bool	Online ()

virtual ElementType	getType () const override
	Get element type std::string. More...

virtual const ElementBase &	getDesign () const
	Return design element. More...

virtual void	trackBunch (PartBunchBase< double, 3 > *bunch, const PartData &, bool revBeam, bool revTrack) const
	Track particle bunch. More...

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map. More...

void	setExitFaceSlope (const double &)

Public Member Functions inherited from ElementBase
	ElementBase (const std::string &name)
	Constructor with given name. More...

	ElementBase ()

	ElementBase (const ElementBase &)

virtual	~ElementBase ()

virtual const std::string &	getName () const
	Get element name. More...

virtual void	setName (const std::string &name)
	Set element name. More...

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length. More...

virtual double	getElementLength () const
	Get design length. More...

virtual void	setElementLength (double length)
	Set design length. More...

virtual void	getElementDimensions (double &begin, double &end) const

virtual double	getOrigin () const
	Get origin position. More...

virtual double	getEntrance () const
	Get entrance position. More...

virtual double	getExit () const
	Get exit position. More...

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform. More...

virtual Euclid3D	getTransform (double s) const
	Get transform. More...

virtual Euclid3D	getTotalTransform () const
	Get transform. More...

virtual Euclid3D	getEntranceFrame () const
	Get transform. More...

virtual Euclid3D	getExitFrame () const
	Get transform. More...

virtual Euclid3D	getEntrancePatch () const
	Get patch. More...

virtual Euclid3D	getExitPatch () const
	Get patch. More...

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value. More...

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute. More...

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute. More...

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute. More...

virtual Channel *	getChannel (const std::string &aKey, bool create=false)
	Construct a read/write channel. More...

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel. More...

virtual ElementBase *	copyStructure ()
	Make a structural copy. More...

bool	isSharable () const
	Test if the element can be shared. More...

virtual void	makeSharable ()
	Set sharable flag. More...

bool	update (const AttributeSet &)
	Update element. More...

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any More...

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element More...

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any More...

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual CoordinateSystemTrafo	getEdgeToBegin () const

virtual CoordinateSystemTrafo	getEdgeToEnd () const

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

virtual bool	isInside (const Vector_t &r) const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame. More...

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename. More...

std::string	getOutputFN () const
	Get output filename. More...

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const

void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute. More...

double	getElementPosition () const

bool	isElementPositionSet () const

Public Member Functions inherited from RCObject
int	addReference () const
	Increment reference count. More...

int	removeReference () const
	Decrement the reference count. More...

bool	isShared () const
	Test for sharing. More...

Private Member Functions
void	calculateDfCoefficients ()

	VerticalFFAMagnet (const VerticalFFAMagnet &right)

VerticalFFAMagnet &	operator= (const VerticalFFAMagnet &rhs)

Private Attributes
StraightGeometry	straightGeometry_m

BMultipoleField	dummy

size_t	maxOrder_m = 0

double	k_m = 0.

double	Bz_m = 0.

double	zNegExtent_m = 0.

double	zPosExtent_m = 0.

double	halfWidth_m = 0.

double	bbLength_m = 0.

std::unique_ptr < endfieldmodel::EndFieldModel >	endField_m

std::vector< std::vector < double > >	dfCoefficients_m

Additional Inherited Members
Static Public Member Functions inherited from ElementBase
static std::string	getTypeString (ElementType type)

Protected Member Functions inherited from ElementBase
bool	isInsideTransverse (const Vector_t &r) const

Protected Member Functions inherited from RCObject
	RCObject ()
	Default constructor. More...

	RCObject (const RCObject &)
	Copy constructor. More...

virtual	~RCObject ()=0

RCObject &	operator= (const RCObject &right)

Protected Attributes inherited from Component
double	exit_face_slope_m

PartBunchBase< double, 3 > *	RefPartBunch_m

bool	online_m

Protected Attributes inherited from ElementBase
bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Static Protected Attributes inherited from Component
static const std::vector< double >	defaultAperture_m

Detailed Description

Bending magnet with an exponential dependence on field in the vertical plane

VerticalFFAMagnet makes a rectangular bending magnet with a dipole field that has a dependence like B0 exp(mz)

Definition at line 38 of file VerticalFFAMagnet.h.

Constructor & Destructor Documentation

VerticalFFAMagnet::VerticalFFAMagnet ( const std::string & name )

explicit

Construct a new VerticalFFAMagnet

Parameters

name	User-defined name of the VerticalFFAMagnet

Definition at line 26 of file VerticalFFAMagnet.cpp.

Referenced by clone().

VerticalFFAMagnet::~VerticalFFAMagnet ( )

Destructor - deletes the field

Definition at line 48 of file VerticalFFAMagnet.cpp.

VerticalFFAMagnet::VerticalFFAMagnet ( const VerticalFFAMagnet & right )

private

Copy constructor

Definition at line 30 of file VerticalFFAMagnet.cpp.

References Component::RefPartBunch_m.

Member Function Documentation

void VerticalFFAMagnet::accept ( BeamlineVisitor & visitor ) const

virtual

Accept a beamline visitor

Implements ElementBase.

Definition at line 88 of file VerticalFFAMagnet.cpp.

References BeamlineVisitor::visitVerticalFFAMagnet().

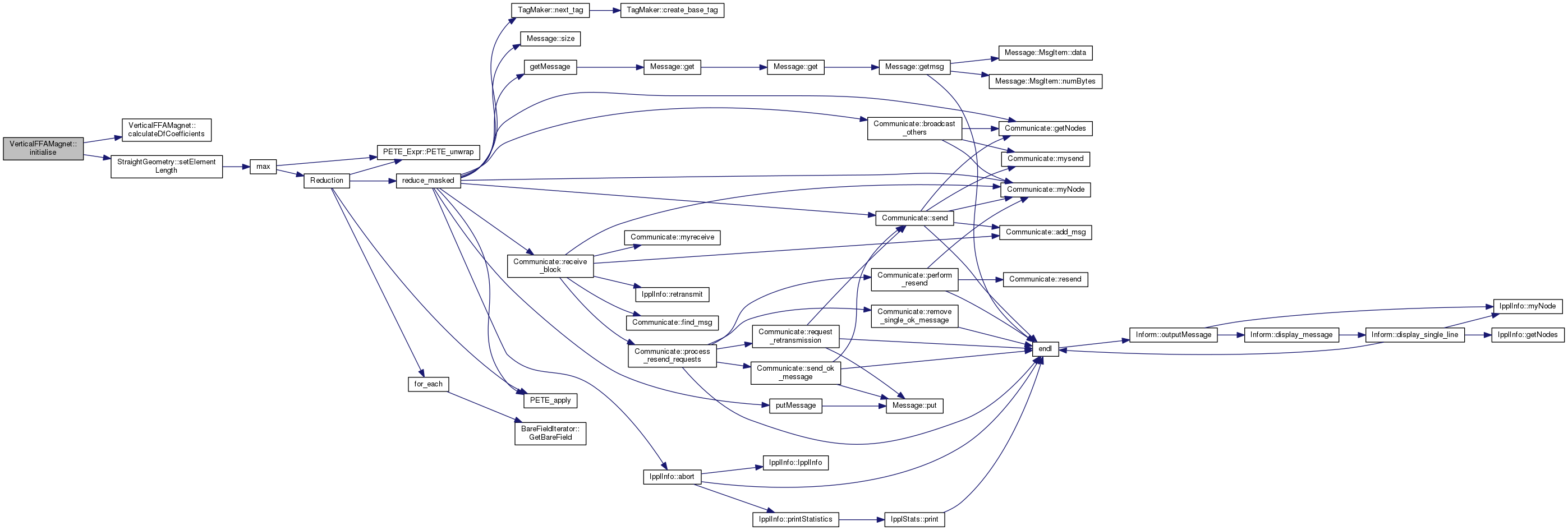

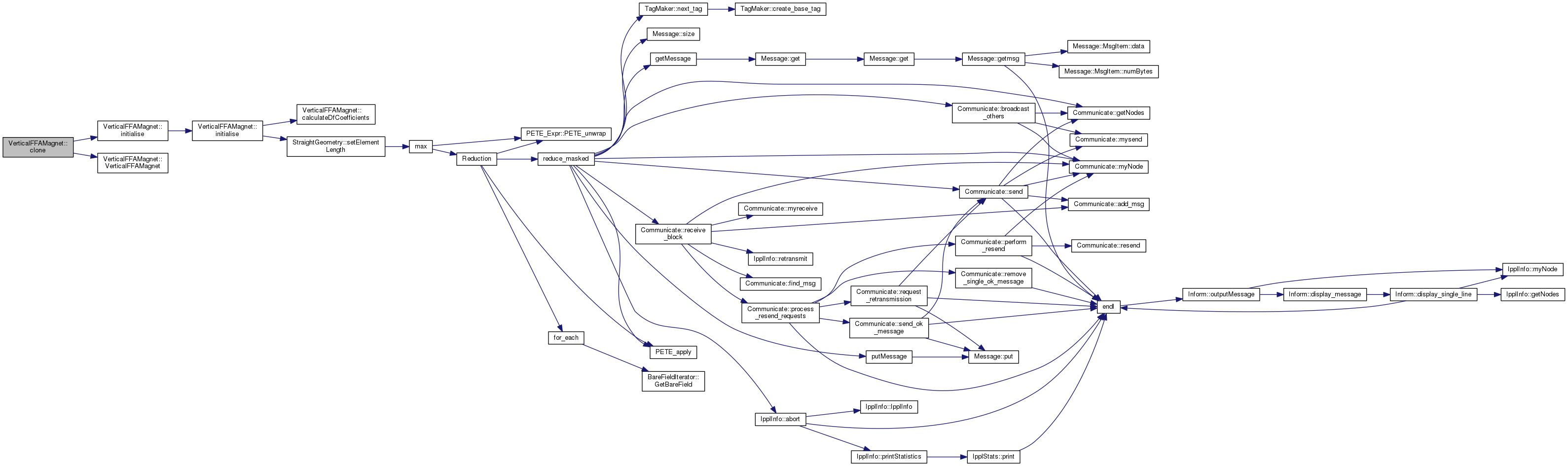

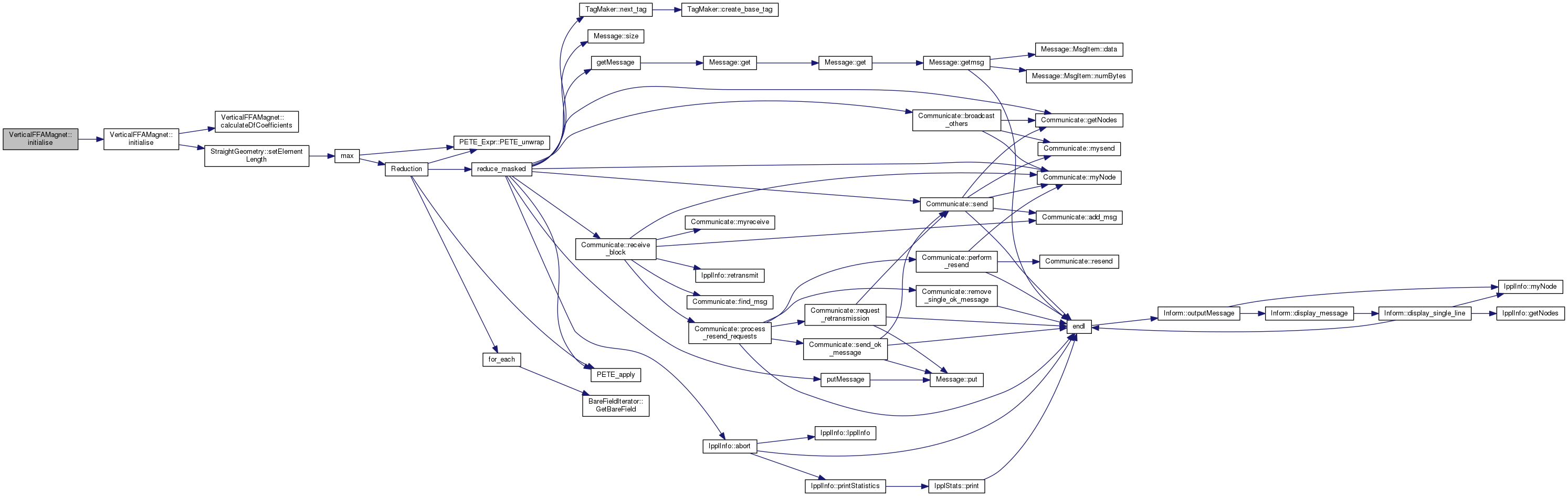

Here is the call graph for this function:

bool VerticalFFAMagnet::apply	(	const size_t &	i,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

inlinevirtual

Calculate the field at the position of the ith particle

Parameters

i	index of the particle event; field is calculated at this position
t	time at which the field is to be calculated
E	calculated electric field - always 0 (no E-field)
B	calculated magnetic field

Returns: true if particle is outside the field map

Reimplemented from Component.

Definition at line 227 of file VerticalFFAMagnet.h.

References PartBunchBase< T, Dim >::P, PartBunchBase< T, Dim >::R, and Component::RefPartBunch_m.

bool VerticalFFAMagnet::apply	(	const Vector_t &	R,
		const Vector_t &	P,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

inlinevirtual

Calculate the field at some arbitrary position

Parameters

R	position in the local coordinate system of the magnet
P	not used
t	not used
E	not used
B	calculated magnetic field

Returns: true if particle is outside the field map, else false

Reimplemented from Component.

Definition at line 232 of file VerticalFFAMagnet.h.

References getFieldValue().

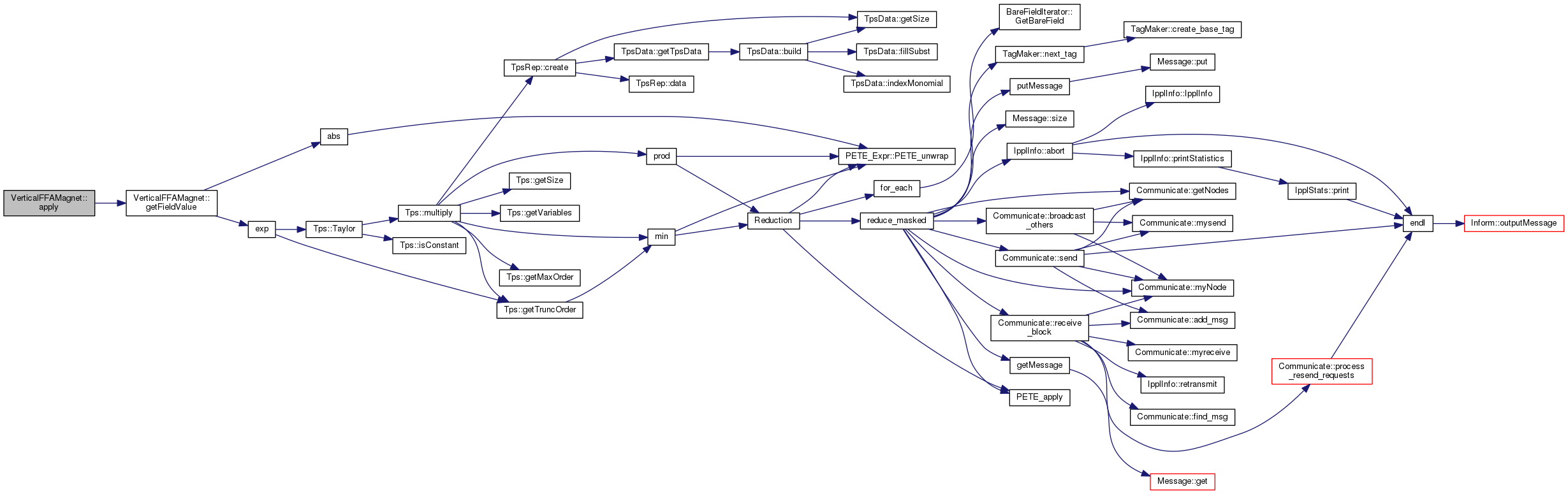

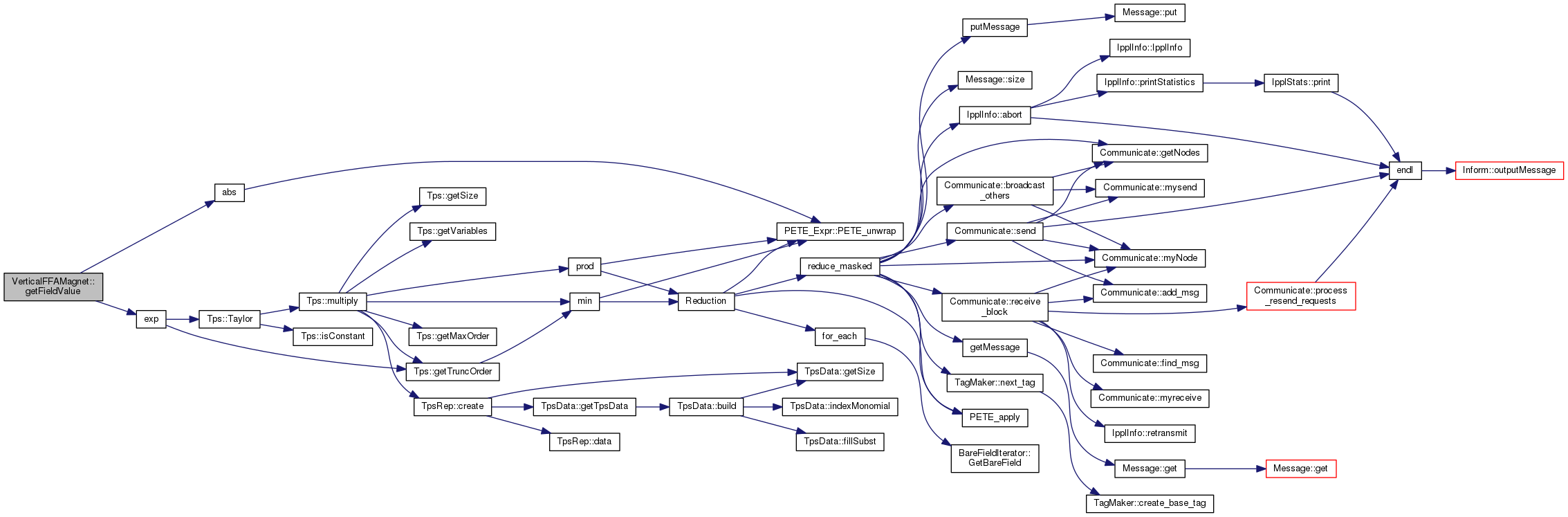

Here is the call graph for this function:

bool VerticalFFAMagnet::bends ( ) const

inlinevirtual

Return false - VerticalFFAMagnet is a straight magnet

Nb: the VerticalFFAMagnet geometry is straight even though trajectories are not

Implements Component.

Definition at line 108 of file VerticalFFAMagnet.h.

void VerticalFFAMagnet::calculateDfCoefficients ( )

private

Definition at line 133 of file VerticalFFAMagnet.cpp.

References dfCoefficients_m, k_m, maxOrder_m, and Hypervolume::n.

Referenced by initialise().

ElementBase * VerticalFFAMagnet::clone ( ) const

virtual

Inheritable copy constructor

Implements ElementBase.

Definition at line 51 of file VerticalFFAMagnet.cpp.

References initialise(), magnet, and VerticalFFAMagnet().

Here is the call graph for this function:

void VerticalFFAMagnet::finalise ( )

virtual

Finalise the VerticalFFAMagnet - sets bunch to nullptr

Implements Component.

Definition at line 76 of file VerticalFFAMagnet.cpp.

References Component::RefPartBunch_m.

double VerticalFFAMagnet::getB0 ( ) const

inline

Get the centre field at z=0

Definition at line 151 of file VerticalFFAMagnet.h.

References Bz_m, and Units::kG2T.

double VerticalFFAMagnet::getBBLength ( ) const

inline

Get the length of the bounding box (centred on magnet centre)

Definition at line 175 of file VerticalFFAMagnet.h.

References bbLength_m.

std::vector< std::vector< double > > VerticalFFAMagnet::getDfCoefficients ( ) const

inline

Get the coefficients used for the field expansion

B_y is given by sum_n B_0 exp(ky) f_n x^n where f_n = sum_k c_{nk} partial_k f_0

Returns a vector of vectors, like c[n][k]. The expansion for the other field elements can be related back to c[n][k] (see elsewhere for details).

Definition at line 237 of file VerticalFFAMagnet.h.

References dfCoefficients_m.

void VerticalFFAMagnet::getDimensions	(	double &	,
		double &
	)		const

inlinevirtual

Not implemented

Implements Component.

Definition at line 111 of file VerticalFFAMagnet.h.

endfieldmodel::EndFieldModel* VerticalFFAMagnet::getEndField ( ) const

inline

Get the fringe field

Returns the fringe field model; VerticalFFAMagnet retains ownership of the returned memory.

Definition at line 133 of file VerticalFFAMagnet.h.

References endField_m.

Referenced by OpalVerticalFFAMagnet::update().

EMField & VerticalFFAMagnet::getField ( )

virtual

Return a dummy (0.) field value (what is this for?)

Implements Component.

Definition at line 57 of file VerticalFFAMagnet.cpp.

References dummy.

const EMField & VerticalFFAMagnet::getField ( ) const

virtual

Return a dummy (0.) field value (what is this for?)

Implements Component.

Definition at line 61 of file VerticalFFAMagnet.cpp.

References dummy.

double VerticalFFAMagnet::getFieldIndex ( ) const

inline

Get the field index

Definition at line 157 of file VerticalFFAMagnet.h.

References k_m.

bool VerticalFFAMagnet::getFieldValue	(	const Vector_t &	R,
		Vector_t &	B
	)		const

Calculate the field at some arbitrary position in cartesian coordinates

Parameters

R	position in the local coordinate system of the bend, in cartesian coordinates defined like (x, y, z)
B	calculated magnetic field defined like (Bx, By, Bz)

Returns: true if particle is outside the field map, else false

Definition at line 92 of file VerticalFFAMagnet.cpp.

References abs(), bbLength_m, Bz_m, dfCoefficients_m, endField_m, exp(), halfWidth_m, k_m, maxOrder_m, Hypervolume::n, zNegExtent_m, and zPosExtent_m.

Referenced by apply().

Here is the call graph for this function:

BGeometryBase & VerticalFFAMagnet::getGeometry ( )

virtual

Return the cell geometry

Implements ElementBase.

Definition at line 80 of file VerticalFFAMagnet.cpp.

References straightGeometry_m.

const BGeometryBase & VerticalFFAMagnet::getGeometry ( ) const

virtual

Return the cell geometry

Implements ElementBase.

Definition at line 84 of file VerticalFFAMagnet.cpp.

References straightGeometry_m.

size_t VerticalFFAMagnet::getMaxOrder ( ) const

inline

Get the maximum power of x used in the off-midplane expansion;

Definition at line 144 of file VerticalFFAMagnet.h.

References maxOrder_m.

double VerticalFFAMagnet::getNegativeVerticalExtent ( ) const

inline

Get the maximum extent below z = 0

Definition at line 163 of file VerticalFFAMagnet.h.

References zNegExtent_m.

double VerticalFFAMagnet::getPositiveVerticalExtent ( ) const

inline

Get the maximum extent above z = 0

Definition at line 169 of file VerticalFFAMagnet.h.

References zPosExtent_m.

double VerticalFFAMagnet::getWidth ( ) const

inline

Get the full width of the bounding box (centred on magnet centre)

Definition at line 181 of file VerticalFFAMagnet.h.

References halfWidth_m.

void VerticalFFAMagnet::initialise	(	PartBunchBase< double, 3 > *	bunch,
		double &	startField,
		double &	endField
	)

virtual

Initialise the VerticalFFAMagnet

Parameters

bunch	the global bunch object (but not used)
startField	not used
endField	not used

Implements Component.

Definition at line 70 of file VerticalFFAMagnet.cpp.

References initialise(), and Component::RefPartBunch_m.

Referenced by clone(), and OpalVerticalFFAMagnet::update().

Here is the call graph for this function:

void VerticalFFAMagnet::initialise ( )

Initialise the VerticalFFAMagnet

Sets up the field expansion and the geometry; call after changing any field parameters

Definition at line 65 of file VerticalFFAMagnet.cpp.

References bbLength_m, calculateDfCoefficients(), StraightGeometry::setElementLength(), and straightGeometry_m.

Referenced by initialise().

Here is the call graph for this function:

VerticalFFAMagnet& VerticalFFAMagnet::operator= ( const VerticalFFAMagnet & rhs )

private

void VerticalFFAMagnet::setB0 ( double Bz )

inline

Set the centre field at z=0

Definition at line 154 of file VerticalFFAMagnet.h.

References Bz_m, and Units::T2kG.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setBBLength ( double bbLength )

inline

Set the length of the bounding box (centred on magnet centre)

Definition at line 178 of file VerticalFFAMagnet.h.

References bbLength_m.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setEndField ( endfieldmodel::EndFieldModel * endField )

Set the fringe field

endField: the new fringe field; VerticalFFAMagnet takes ownership of the memory associated with endField.

Definition at line 154 of file VerticalFFAMagnet.cpp.

References endField_m, and maxOrder_m.

Referenced by OpalVerticalFFAMagnet::OpalVerticalFFAMagnet().

void VerticalFFAMagnet::setFieldIndex ( double index )

inline

Set the field index

Definition at line 160 of file VerticalFFAMagnet.h.

References k_m.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setMaxOrder ( size_t maxOrder )

Set the maximum power of x used in the off-midplane expansion;

Definition at line 159 of file VerticalFFAMagnet.cpp.

References endField_m, and maxOrder_m.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setNegativeVerticalExtent ( double negativeExtent )

inline

Set the maximum extent below z = 0

Definition at line 219 of file VerticalFFAMagnet.h.

References zNegExtent_m.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setPositiveVerticalExtent ( double positiveExtent )

inline

set the maximum extent above z = 0

Definition at line 223 of file VerticalFFAMagnet.h.

References zPosExtent_m.

Referenced by OpalVerticalFFAMagnet::update().

void VerticalFFAMagnet::setWidth ( double width )

inline

Set the full width of the bounding box (centred on magnet centre)

Definition at line 184 of file VerticalFFAMagnet.h.

References halfWidth_m.

Referenced by OpalVerticalFFAMagnet::update().

Member Data Documentation

double VerticalFFAMagnet::bbLength_m = 0.

private

Definition at line 214 of file VerticalFFAMagnet.h.

Referenced by getBBLength(), getFieldValue(), initialise(), and setBBLength().

double VerticalFFAMagnet::Bz_m = 0.

private

Definition at line 210 of file VerticalFFAMagnet.h.

Referenced by getB0(), getFieldValue(), and setB0().

std::vector<std::vector<double> > VerticalFFAMagnet::dfCoefficients_m

private

Definition at line 216 of file VerticalFFAMagnet.h.

Referenced by calculateDfCoefficients(), getDfCoefficients(), and getFieldValue().

BMultipoleField VerticalFFAMagnet::dummy

private

Definition at line 206 of file VerticalFFAMagnet.h.

Referenced by getField().

std::unique_ptr<endfieldmodel::EndFieldModel> VerticalFFAMagnet::endField_m

private

Definition at line 215 of file VerticalFFAMagnet.h.

Referenced by getEndField(), getFieldValue(), setEndField(), and setMaxOrder().

double VerticalFFAMagnet::halfWidth_m = 0.

private

Definition at line 213 of file VerticalFFAMagnet.h.

Referenced by getFieldValue(), getWidth(), and setWidth().

double VerticalFFAMagnet::k_m = 0.

private

Definition at line 209 of file VerticalFFAMagnet.h.

Referenced by calculateDfCoefficients(), getFieldIndex(), getFieldValue(), and setFieldIndex().

size_t VerticalFFAMagnet::maxOrder_m = 0

private

Definition at line 208 of file VerticalFFAMagnet.h.

Referenced by calculateDfCoefficients(), getFieldValue(), getMaxOrder(), setEndField(), and setMaxOrder().

StraightGeometry VerticalFFAMagnet::straightGeometry_m

private

Definition at line 205 of file VerticalFFAMagnet.h.

Referenced by getGeometry(), and initialise().

double VerticalFFAMagnet::zNegExtent_m = 0.

private

Definition at line 211 of file VerticalFFAMagnet.h.

Referenced by getFieldValue(), getNegativeVerticalExtent(), and setNegativeVerticalExtent().

double VerticalFFAMagnet::zPosExtent_m = 0.

private

Definition at line 212 of file VerticalFFAMagnet.h.

Referenced by getFieldValue(), getPositiveVerticalExtent(), and setPositiveVerticalExtent().

The documentation for this class was generated from the following files:

src/Classic/AbsBeamline/VerticalFFAMagnet.h
src/Classic/AbsBeamline/VerticalFFAMagnet.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
