#include <SplineTimeDependence.h>

Inheritance diagram for SplineTimeDependence:

Collaboration diagram for SplineTimeDependence:

Public Member Functions
	SplineTimeDependence (size_t splineOrder, std::vector< double > times, std::vector< double > values)

	SplineTimeDependence (const SplineTimeDependence &rhs)

	SplineTimeDependence ()

	~SplineTimeDependence ()

double	getValue (double time)

SplineTimeDependence *	clone ()

Inform &	print (Inform &os)

void	setSpline (size_t splineOrder, std::vector< double > times, std::vector< double > values)

Public Member Functions inherited from AbstractTimeDependence
virtual	~AbstractTimeDependence ()

Private Attributes
gsl_spline *	spline_m

gsl_interp_accel *	acc_m

size_t	splineOrder_m

std::vector< double >	times_m

std::vector< double >	values_m

Additional Inherited Members
Static Public Member Functions inherited from AbstractTimeDependence
static std::shared_ptr < AbstractTimeDependence >	getTimeDependence (std::string name)

static void	setTimeDependence (std::string name, std::shared_ptr< AbstractTimeDependence > time_dep)

static std::string	getName (std::shared_ptr< AbstractTimeDependence > time_dep)

Detailed Description

Time dependence that follows a spline. Interpolation is supported at linear or cubic order..

Interpolation is done using gsl_spline routines (1st or 3rd order).

Nb: I tried to use PolynomialPatch, as it is arbitrary order interpolation, but it turns out that only works for regular grids.

Definition at line 50 of file SplineTimeDependence.h.

Constructor & Destructor Documentation

SplineTimeDependence::SplineTimeDependence	(	size_t	splineOrder,
		std::vector< double >	times,
		std::vector< double >	values
	)

Constructor

Parameters

splineOrder	the order of the spline used to fit the time dependence; either 1 (linear interpolation) or 3 (cubic spline with quadratic smoothing)
times	the times of successive elements in the time dependence
values	the values at each time step.

It is an error if times and values are not of equal length, times and values length < splineOrder + 1, or times do not increase strictly monotonically.

Definition at line 36 of file SplineTimeDependence.cpp.

References setSpline().

Here is the call graph for this function:

SplineTimeDependence::SplineTimeDependence ( const SplineTimeDependence & rhs )

Copy Constructor

Definition at line 43 of file SplineTimeDependence.cpp.

References setSpline(), splineOrder_m, times_m, and values_m.

Here is the call graph for this function:

SplineTimeDependence::SplineTimeDependence ( )

Default Constructor makes a dependence of length 2 with values 0

Definition at line 48 of file SplineTimeDependence.cpp.

Referenced by clone().

SplineTimeDependence::~SplineTimeDependence ( )

Destructor does nothing

Definition at line 51 of file SplineTimeDependence.cpp.

References acc_m, and spline_m.

Member Function Documentation

SplineTimeDependence * SplineTimeDependence::clone ( )

virtual

Inheritable copy constructor

Returns: new SplineTimeDependence.

Implements AbstractTimeDependence.

Definition at line 60 of file SplineTimeDependence.cpp.

References setSpline(), splineOrder_m, SplineTimeDependence(), times_m, and values_m.

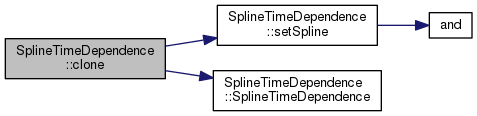

Here is the call graph for this function:

double SplineTimeDependence::getValue ( double time )

inlinevirtual

Return the value of the spline at a given time

Parameters

time,: time at which the spline is referenced. If time is off either end of the spline, the last few values are used to extrapolate past the end of the spline.

Implements AbstractTimeDependence.

Definition at line 119 of file SplineTimeDependence.h.

References acc_m, or, spline_m, and times_m.

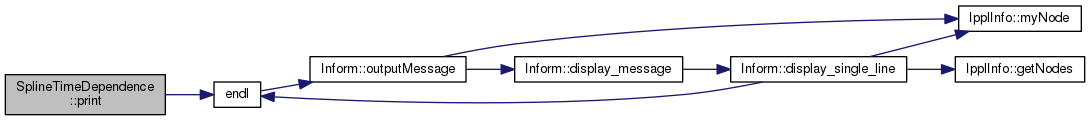

Inform & SplineTimeDependence::print ( Inform & os )

Print summary information about the time dependence

Parameters
