Base class for meshing routines. More...

#include <Mesh.h>

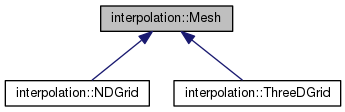

Inheritance diagram for interpolation::Mesh:

Classes
class	Iterator

Public Member Functions
	Mesh ()

virtual Mesh::Iterator	begin () const =0

virtual Mesh::Iterator	end () const =0

virtual Mesh *	clone ()=0

virtual Mesh *	dual () const =0

virtual	~Mesh ()

virtual void	getPosition (const Mesh::Iterator &it, double *position) const =0

virtual int	getPositionDimension () const =0

virtual int	toInteger (const Mesh::Iterator &lhs) const =0

virtual Mesh::Iterator	getNearest (const double *position) const =0

Protected Member Functions
virtual Mesh::Iterator &	addEquals (Mesh::Iterator &lhs, int difference) const =0

virtual Mesh::Iterator &	subEquals (Mesh::Iterator &lhs, int difference) const =0

virtual Mesh::Iterator &	addEquals (Mesh::Iterator &lhs, const Mesh::Iterator &rhs) const =0

virtual Mesh::Iterator &	subEquals (Mesh::Iterator &lhs, const Mesh::Iterator &rhs) const =0

virtual Mesh::Iterator &	addOne (Mesh::Iterator &lhs) const =0

virtual Mesh::Iterator &	subOne (Mesh::Iterator &lhs) const =0

virtual bool	isGreater (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs) const =0

Friends
Mesh::Iterator	operator++ (Mesh::Iterator &lhs, int)

Mesh::Iterator	operator-- (Mesh::Iterator &lhs, int)

Mesh::Iterator &	operator++ (Mesh::Iterator &lhs)

Mesh::Iterator &	operator-- (Mesh::Iterator &lhs)

Mesh::Iterator	operator- (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

Mesh::Iterator	operator+ (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

Mesh::Iterator &	operator-= (Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

Mesh::Iterator &	operator+= (Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

Mesh::Iterator	operator- (const Mesh::Iterator &lhs, const int &rhs)

Mesh::Iterator	operator+ (const Mesh::Iterator &lhs, const int &rhs)

Mesh::Iterator &	operator-= (Mesh::Iterator &lhs, const int &rhs)

Mesh::Iterator &	operator+= (Mesh::Iterator &lhs, const int &rhs)

bool	operator== (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

bool	operator!= (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

bool	operator>= (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

bool	operator<= (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

bool	operator< (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

bool	operator> (const Mesh::Iterator &lhs, const Mesh::Iterator &rhs)

Detailed Description

Base class for meshing routines.

Aim is to describe a set of points in various dimensions etc for use in interpolation routines. Concrete classes are TwoDGrid, ThreeDGrid, NDGrid and TriangularMesh (two dimensional delaunay mesh).

Iterator is defined for easy access to all member data (e.g. for IO) but no const_iterator type.

Definition at line 49 of file Mesh.h.

Constructor & Destructor Documentation

Mesh< Dim >::Mesh ( )

inline

Constructor (does nothing)

Definition at line 34 of file Mesh-inl.icc.

Mesh< Dim >::~Mesh ( )

inlinevirtual

Destructor - does nothing

Definition at line 37 of file Mesh-inl.icc.

Member Function Documentation

virtual Mesh::Iterator& interpolation::Mesh::addEquals	(	Mesh::Iterator &	lhs,
		int	difference
	)		const

protectedpure virtual

Add difference to lhs and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::operator+(), and interpolation::operator+=().

virtual Mesh::Iterator& interpolation::Mesh::addEquals	(	Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)		const

protectedpure virtual

Add difference to lhs and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

virtual Mesh::Iterator& interpolation::Mesh::addOne ( Mesh::Iterator & lhs ) const

protectedpure virtual

Increment position of lhs by one and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::operator++().

virtual Mesh::Iterator interpolation::Mesh::begin ( ) const

pure virtual

Return the first point on the mesh

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::PPSolveFactory::outOfBoundsPosition(), and interpolation::PPSolveFactory::solve().

virtual Mesh* interpolation::Mesh::clone ( )

pure virtual

Return a copy of child object

Implemented in interpolation::NDGrid, and interpolation::ThreeDGrid.

Referenced by interpolation::PolynomialPatch::clone().

virtual Mesh* interpolation::Mesh::dual ( ) const

pure virtual

Return the "Dual" of the mesh or nullptr if not implemented

Dual is a polyhedron that has centre of each face as a point on the mesh

Implemented in interpolation::NDGrid, and interpolation::ThreeDGrid.

Referenced by interpolation::PPSolveFactory::PPSolveFactory().

virtual Mesh::Iterator interpolation::Mesh::end ( ) const

pure virtual

Return the last+1 point on the mesh

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::PPSolveFactory::getDerivs(), interpolation::PPSolveFactory::getValues(), interpolation::PPSolveFactory::outOfBoundsPosition(), interpolation::PolynomialPatch::PolynomialPatch(), interpolation::PPSolveFactory::PPSolveFactory(), and interpolation::PPSolveFactory::solve().

virtual Mesh::Iterator interpolation::Mesh::getNearest ( const double * position ) const

pure virtual

Find the point on the mesh nearest to given point

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::PolynomialPatch::function(), and interpolation::PolynomialPatch::getPolynomialVector().

virtual void interpolation::Mesh::getPosition	(	const Mesh::Iterator &	it,
		double *	position
	)		const

pure virtual

Return the position of a point in the mesh

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

virtual int interpolation::Mesh::getPositionDimension ( ) const

pure virtual

Return the dimension of the mesh

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::PPSolveFactory::getDerivPoints(), interpolation::PPSolveFactory::getPoints(), interpolation::PolynomialPatch::PolynomialPatch(), interpolation::PPSolveFactory::PPSolveFactory(), and interpolation::PPSolveFactory::solve().

virtual bool interpolation::Mesh::isGreater	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)		const

protectedpure virtual

Return true if rhs is greater than lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::operator<=(), and interpolation::operator>=().

virtual Mesh::Iterator& interpolation::Mesh::subEquals	(	Mesh::Iterator &	lhs,
		int	difference
	)		const

protectedpure virtual

Subtract difference from lhs and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::operator-(), and interpolation::operator-=().

virtual Mesh::Iterator& interpolation::Mesh::subEquals	(	Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)		const

protectedpure virtual

Subtract difference from lhs and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

virtual Mesh::Iterator& interpolation::Mesh::subOne ( Mesh::Iterator & lhs ) const

protectedpure virtual

Decrement position of lhs by one and then return lhs

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Referenced by interpolation::operator--().

virtual int interpolation::Mesh::toInteger ( const Mesh::Iterator & lhs ) const

pure virtual

Map from iterator to an integer used to index the iterator

Implemented in interpolation::ThreeDGrid, and interpolation::NDGrid.

Friends And Related Function Documentation

bool operator!=	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs does not index the same position as rhs

Definition at line 178 of file Mesh-inl.icc.

Mesh::Iterator operator+	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Addition operator - adds offset of rhs of rhs relative to Begin() to lhs

Definition at line 124 of file Mesh-inl.icc.

Mesh::Iterator operator+	(	const Mesh::Iterator &	lhs,
		const int &	rhs
	)

friend

Addition operator - adds rhs to lhs and returns copy of lhs

Definition at line 130 of file Mesh-inl.icc.

Mesh::Iterator operator++	(	Mesh::Iterator &	lhs,
		int
	)

friend

Postfix increment operator it++ advances iterator by one

Definition at line 98 of file Mesh-inl.icc.

Mesh::Iterator& operator++ ( Mesh::Iterator & lhs )

friend

Prefix increment operator ++it

Definition at line 90 of file Mesh-inl.icc.

Mesh::Iterator& operator+=	(	Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Addition operator - adds offset of rhs of rhs relative to Begin() to lhs and returns lhs

Definition at line 137 of file Mesh-inl.icc.

Mesh::Iterator& operator+=	(	Mesh::Iterator &	lhs,
		const int &	rhs
	)

friend

Addition operator - subtracts rhs from lhs and returns lhs

Definition at line 145 of file Mesh-inl.icc.

Mesh::Iterator operator-	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Subtraction operator - subtracts offset of rhs relative to Begin() from lhs

Definition at line 111 of file Mesh-inl.icc.

Mesh::Iterator operator-	(	const Mesh::Iterator &	lhs,
		const int &	rhs
	)

friend

Subtraction operator - subtracts from lhs and returns copy of lhs

Definition at line 117 of file Mesh-inl.icc.

Mesh::Iterator operator--	(	Mesh::Iterator &	lhs,
		int
	)

friend

Postfix decrement operator it– retreats iterator by one

Definition at line 104 of file Mesh-inl.icc.

Mesh::Iterator& operator-- ( Mesh::Iterator & lhs )

friend

Prefix decrement operator –it retreats iterator by one

Definition at line 94 of file Mesh-inl.icc.

Mesh::Iterator& operator-=	(	Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Subtraction operator - subtracts offset of rhs relative to Begin() from lhs and returns lhs

Definition at line 141 of file Mesh-inl.icc.

Mesh::Iterator& operator-=	(	Mesh::Iterator &	lhs,
		const int &	rhs
	)

friend

Subtraction operator - subtracts rhs from lhs and returns lhs

Definition at line 149 of file Mesh-inl.icc.

bool operator<	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs indexes a position less than rhs i.e. successive operation of decrement operator would eventually reach lhs

Definition at line 168 of file Mesh-inl.icc.

bool operator<=	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs indexes a position less than or equal to rhs i.e. successive operation of decrement operator would eventually reach lhs

Definition at line 159 of file Mesh-inl.icc.

bool operator==	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs indexes the same position as rhs

Definition at line 172 of file Mesh-inl.icc.

bool operator>	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs indexes a position greater than rhs i.e. successive operation of increment operator would eventually reach lhs

Definition at line 164 of file Mesh-inl.icc.

bool operator>=	(	const Mesh::Iterator &	lhs,
		const Mesh::Iterator &	rhs
	)

friend

Return true if lhs indexes a position greater than or equal to rhs i.e. successive operation of increment operator would eventually reach lhs

Definition at line 154 of file Mesh-inl.icc.

The documentation for this class was generated from the following files:

src/Classic/Fields/Interpolation/Mesh.h
src/Classic/Fields/Interpolation/Mesh-inl.icc
