interpolation::TriLinearInterpolator Class Reference

#include <TriLinearInterpolator.h>

Inheritance diagram for interpolation::TriLinearInterpolator:

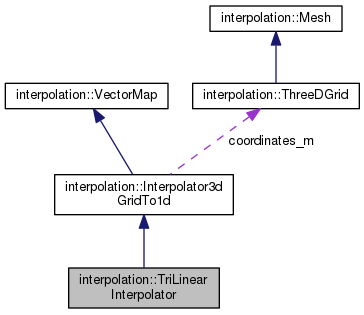

Collaboration diagram for interpolation::TriLinearInterpolator:

Public Member Functions
	TriLinearInterpolator (ThreeDGrid *grid, double ***F)
	TriLinearInterpolator (const TriLinearInterpolator &tli)
	~TriLinearInterpolator ()
void	function (const double Point[3], double Value[1]) const
virtual void	function (const Mesh::Iterator &point, double *value) const
TriLinearInterpolator *	clone () const
Public Member Functions inherited from interpolation::Interpolator3dGridTo1d
	Interpolator3dGridTo1d (ThreeDGrid *grid, double ***F)
	Interpolator3dGridTo1d ()
virtual	~Interpolator3dGridTo1d ()
int	getNumberOfXCoords () const
int	getNumberOfYCoords () const
int	getNumberOfZCoords () const
unsigned int	getPointDimension () const
unsigned int	getValueDimension () const
ThreeDGrid *	getMesh () const
void	setGrid (ThreeDGrid *grid)
void	setX (int nCoords, double *x)
void	setY (int nCoords, double *y)
void	setZ (int nCoords, double *z)
void	setF (double ***inF)
void	deleteFunc (double ***func)
double ***	function () const
void	setAll (ThreeDGrid *grid, double ***F)
void	clear ()
Public Member Functions inherited from interpolation::VectorMap
virtual void	function (const double *point, double *value) const =0
virtual void	functionAppend (const std::vector< std::vector< double > > &point_vec, std::vector< std::vector< double > > &value_vec) const
virtual bool	checkPoint (const std::vector< double > &point) const
virtual bool	checkValue (const std::vector< double > &value) const
virtual	~VectorMap ()

Additional Inherited Members
Protected Attributes inherited from interpolation::Interpolator3dGridTo1d
ThreeDGrid *	coordinates_m
double ***	f_m

Detailed Description

TriLinearInterpolator performs a linear interpolation in x then y then z

Performs a linear interpolation in x then y then z returning a 1D value.

Definition at line 38 of file TriLinearInterpolator.h.

Constructor & Destructor Documentation

interpolation::TriLinearInterpolator::TriLinearInterpolator ( ThreeDGrid *  grid, double ***  F  )

inline

Constructor for grids with constant spacing

Parameters

grid	3d mesh on which data is stored - adds a reference to *this into the mesh smart pointer thing.
F	function data with points on each element of the grid. Indexing goes like [index_x][index_y][index_z]. Interpolator3dGridTo1d now owns this memory All the data handling is done at Interpolator3dGridTo1d

Definition at line 83 of file TriLinearInterpolator.h.

Referenced by clone().

interpolation::TriLinearInterpolator::TriLinearInterpolator

(

const TriLinearInterpolator &

tli

)

Copy constructor

Deep copies the mesh and the function data

Definition at line 32 of file TriLinearInterpolator.cpp.

References interpolation::ThreeDGrid::add(), interpolation::Interpolator3dGridTo1d::coordinates_m, interpolation::Interpolator3dGridTo1d::f_m, interpolation::ThreeDGrid::xSize(), interpolation::ThreeDGrid::ySize(), and interpolation::ThreeDGrid::zSize().

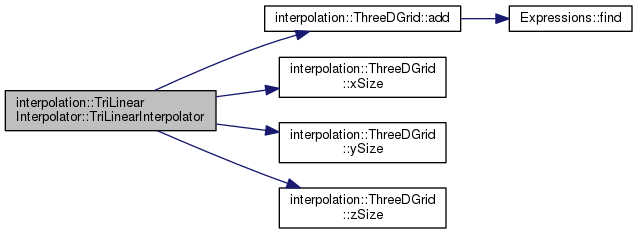

Here is the call graph for this function:

interpolation::TriLinearInterpolator::~TriLinearInterpolator ( )

inline

Destructor - removes reference from the mesh and from the function data

Definition at line 87 of file TriLinearInterpolator.h.

Member Function Documentation

TriLinearInterpolator * interpolation::TriLinearInterpolator::clone ( ) const

inlinevirtual

Copy function (can be called on parent class)

Implements interpolation::Interpolator3dGridTo1d.

Definition at line 90 of file TriLinearInterpolator.h.

References TriLinearInterpolator().

Here is the call graph for this function:

void interpolation::TriLinearInterpolator::function ( const double  Point[3], double  Value[1]  ) const

virtual

Get the interpolated value of the function at some point

First does bound checking, then makes linear interpolations using the standard 1d interpolation formula
\(y(x) \approx \frac{\Delta y}{\Delta x} dx + y_0\)
\(y(x) \approx \frac{y_1(x_1)-y_0(x_0)}{dx}(x-x_0) + y_0\)
Interpolate along 4 x grid lines to make a 2D problem, then interpolate along 2 y grid lines to make a 1D problem, then finally interpolate in z to get the value.

Implements interpolation::Interpolator3dGridTo1d.

Definition at line 49 of file TriLinearInterpolator.cpp.

virtual void interpolation::TriLinearInterpolator::function ( const Mesh::Iterator &  point, double *  value  ) const

inlinevirtual

Call function at a particular point in the mesh

Reimplemented from interpolation::Interpolator3dGridTo1d.

Definition at line 75 of file TriLinearInterpolator.h.

References interpolation::VectorMap::function().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/Classic/Fields/Interpolation/TriLinearInterpolator.h
• src/Classic/Fields/Interpolation/TriLinearInterpolator.cpp
